Left Side View

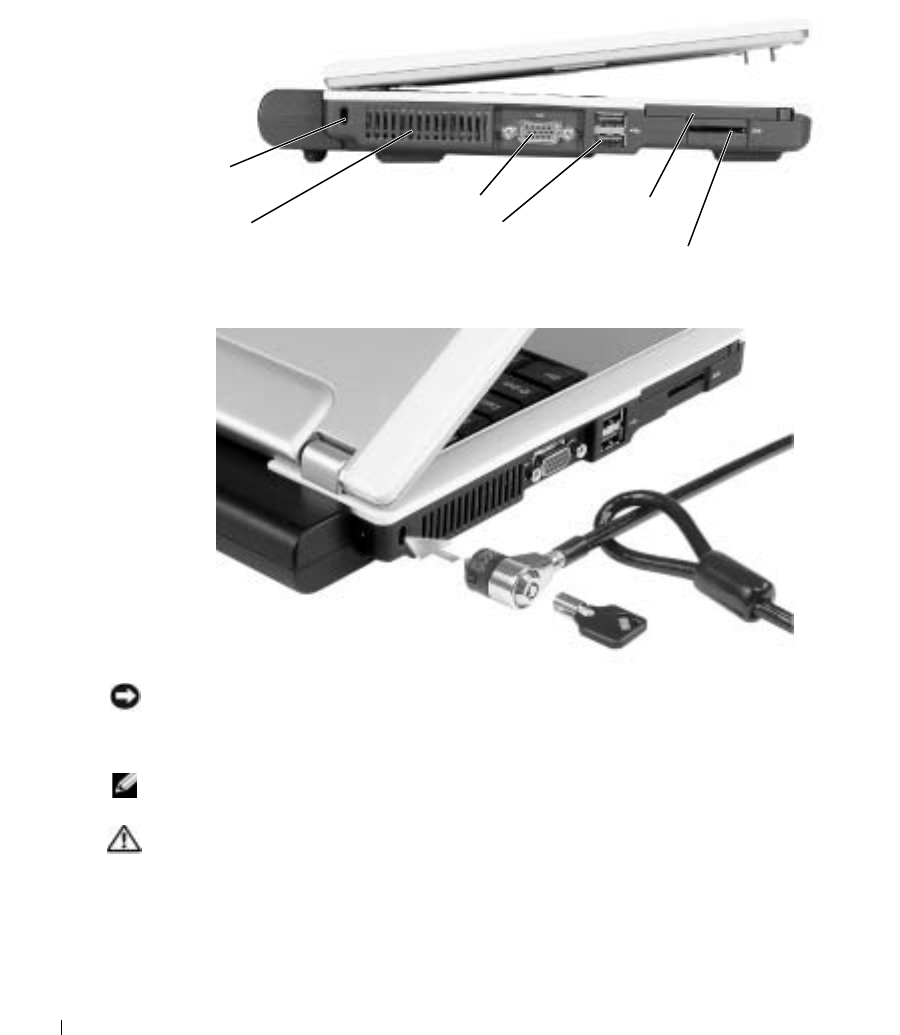

SECURITY CABLE SLOT — Lets you attach a commercially available antitheft device to the computer.
For more information, see the instructions included with the device.
NOTICE: Before you buy an antitheft device, ensure that it will work with the security cable slot.
EXHAUST VENT — The computer uses an internal fan to create airflow through the vents, which prevents
the computer from overheating.
NOTE: The computer turns on the fan when the computer gets hot. Fan noise is normal and does not
indicate a problem with the fans or the computer.
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store
your computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting
the airflow can damage the computer or cause a fire.
video connector
PC Card slot
USB connectors (2)
Secure Digital
memory card slot
security
cable slot
exhaust vent
