Navigating using the Windows PowerShell console
After importing the module, navigate to DellSMBIOS drive. Run Get-ChildItem cmdlet to view the list of
available categories.

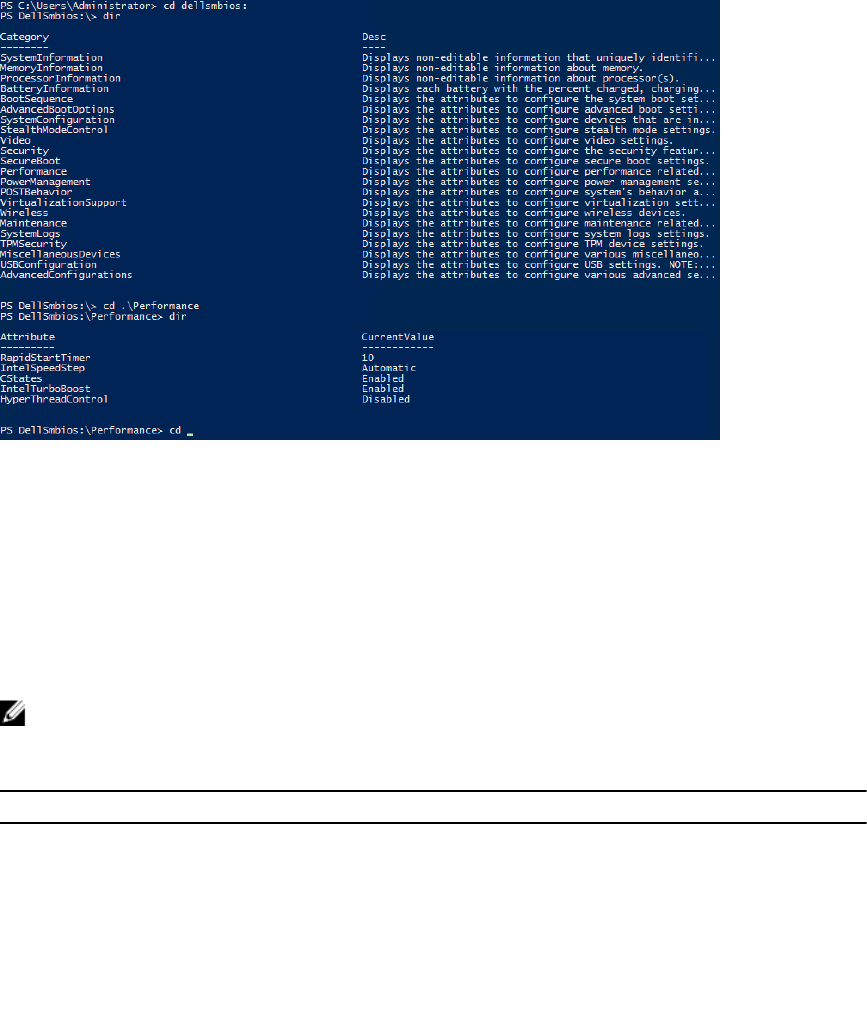

Figure 2. Accessing categories and attributes
To access the attributes in each category, set location to the desired category and then run Get-
Childitem
cmdlet.
Supported cmdlets in Dell Command | PowerShell
Provider
The following are the supported cmdlets in Dell Command | PowerShell Provider:
NOTE: Press Tab To complete the Dell Command | PowerShell Provider cmdlet in the Windows
PowerShell console.
Table 2. Supported cmdlets
Cmdlet Alias Description
Get-Location pwd Displays the current path/location within the DellSMBIOS
drive.
Set-Location cd Sets the working location to a specified path/location within
the DellSMBIOS drive.
Get-Item gi Displays the item at the specified location within the
DellSMBIOS drive.
