Working with Orchestrations
13-6 Active System Manager User Guide, Release 7.1

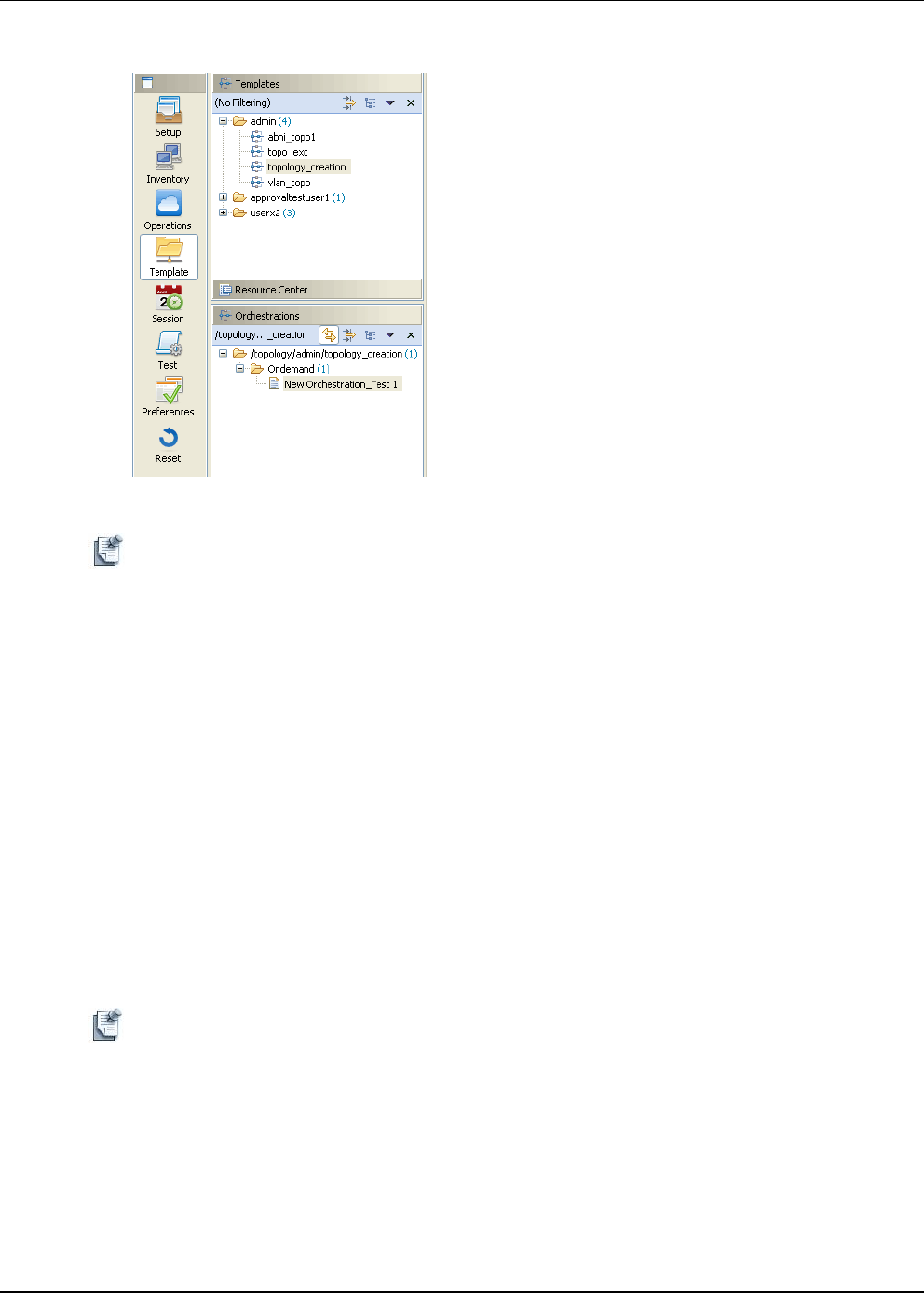

Figure 13-3 Navigating Orchestration
The Orchestrations view displays, by default, with the Template view.
Note The alternate way to access the Orchestrations view is as follows:
1. On the Active System Manager menu bar, click Window > Show View >Other.
2. Click Active System Manager > Orchestrations.
3. Click OK to open the Orchestrations view.
Creating Orchestrations
The On-Demand Orchestration can be set as Setup Orchestration or Teardown Orchestration. Any Template
can contain a maximum of one designated Setup and Teardown Orchestration. The context-menu to change
Orchestration type, is based on applicability; for example, for an Orchestration that is of type Setup, the
visible context-menu to change the Orchestration type contains On-Demand and Teardown Orchestration
types.
To create a new Orchestration, perform the following steps:
1. Access the New Orchestration dialog box using one of the following methods:
• On the Active System Manager menu bar, click File > New > Other > Active System Manager >
New Orchestration.
Note The Template perspective should be pre-selected to access the New Orchestration dialog box using
this method.
• From the Template view, select a Template, right-click, and select New Orchestration.
• On the Orchestrations view, right-click and select New Orchestration.
2. Select the Template for which the new Orchestration is to be created, and specify the name for the new
orchestration sequence; see Figure 13-4.
