Working with Running Sessions

12-52 Active System Manager User Guide, Release 7.1

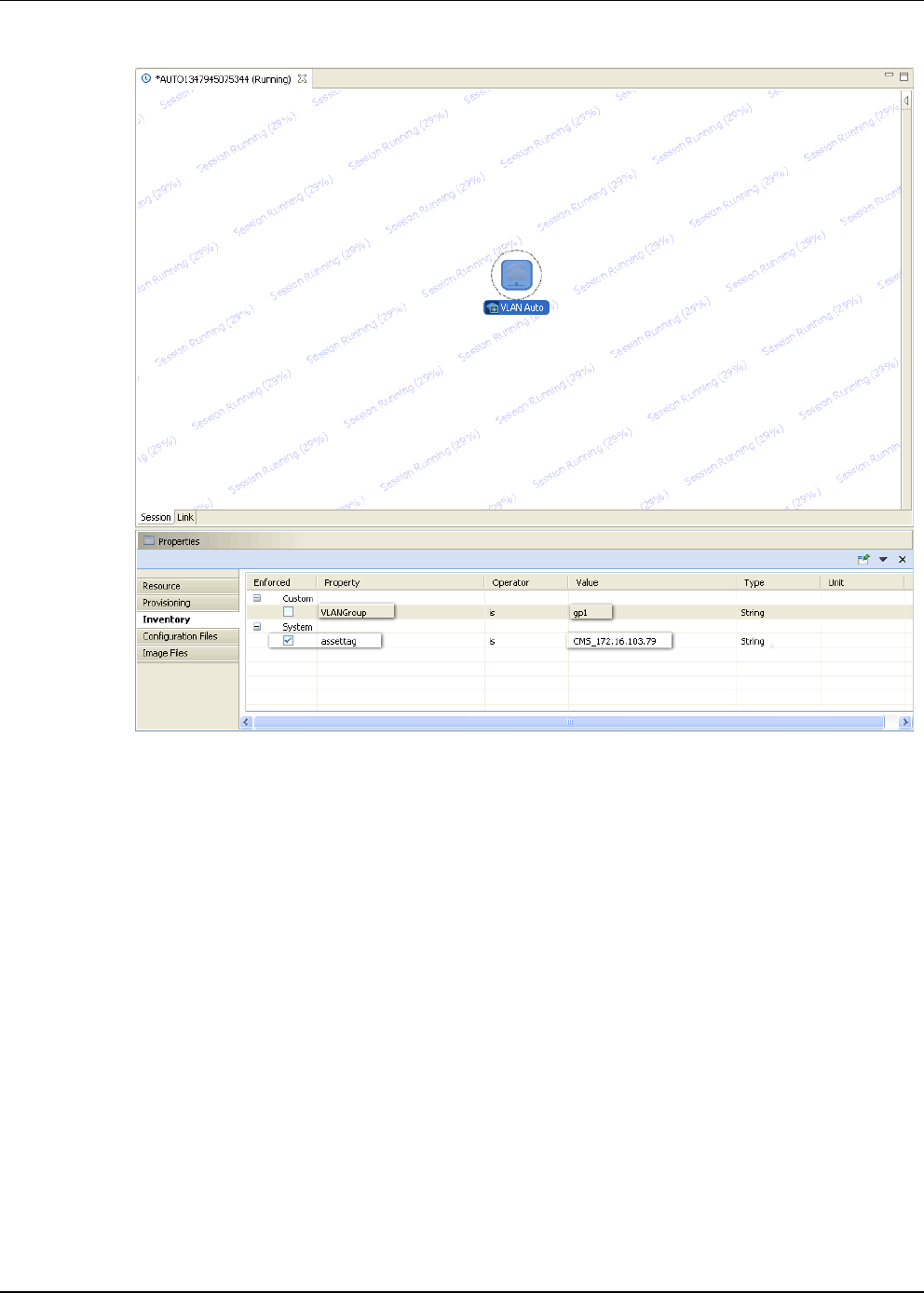

Figure 12-44 Assigning VLANGroup to VLAN Component

On saving the value assigned to VLANGroup, the schedular randomly assigns value from the range for the

selected group, and assigns the value to the VLAN component; see Figure 12-45.
