Working with Running Sessions

12-50 Active System Manager User Guide, Release 7.1

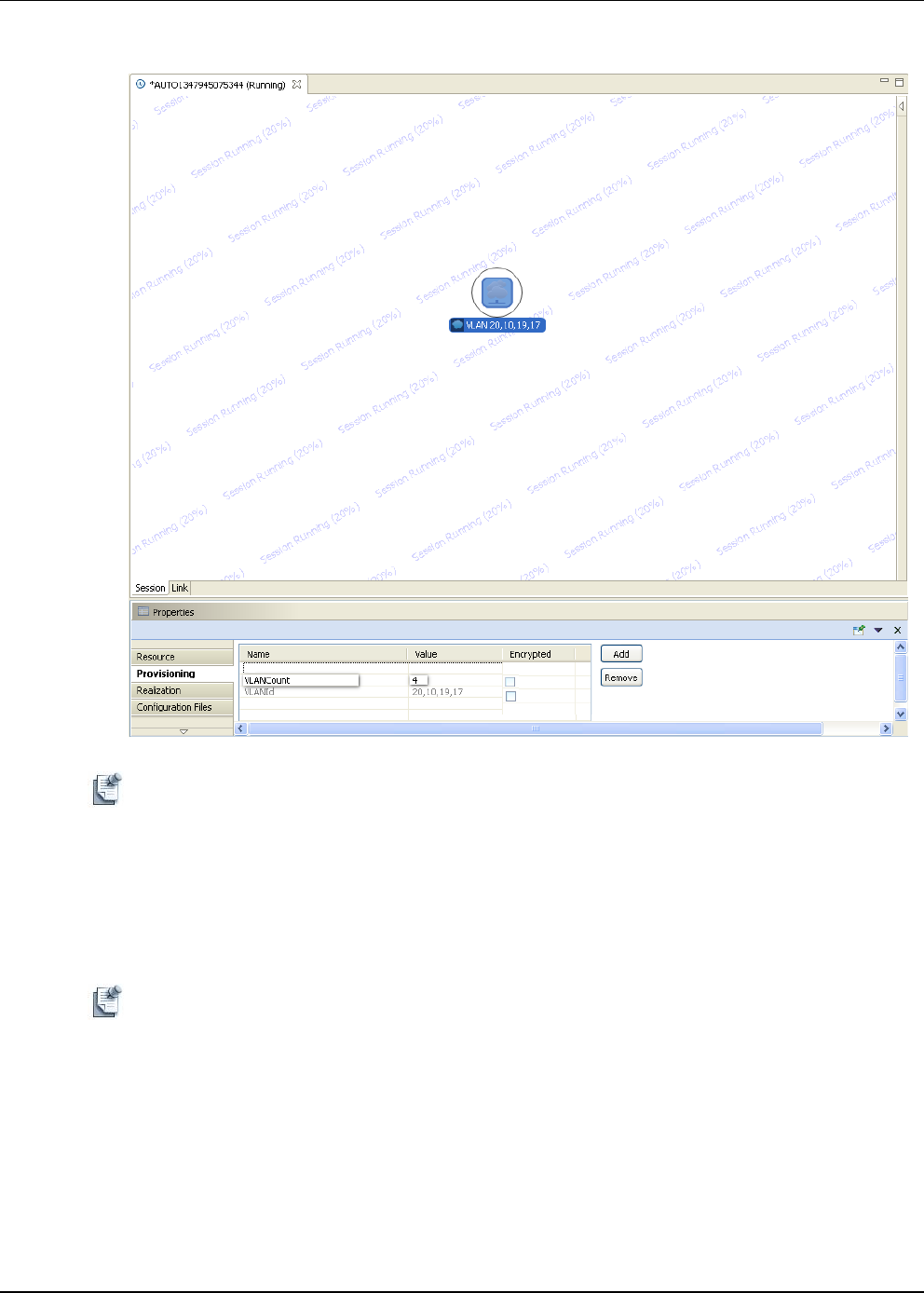

Figure 12-42 Assigning VLAN Count to VLAN Component

Note Either VLANCount or VLANId property can contain a value.

VLANId

The VLANId provisioning property facilitates you to provide comma separated single or multiple VLAN

IDs to the VLAN component. In case of multiple VLAN IDs the value can be provided in the value range

format (10..15).

Note If the VLAN ID is blank, the VLANId value is automatically assigned by the Active System

Manager software at the time of the realization; or else, the VLAN ID must be a valid number that

you set in your inventory

To assign a VLAN ID to the VLAN component, enter the valid VLANId value; see Figure 12-43.
