Working with Running Sessions
12-48 Active System Manager User Guide, Release 7.1
Supporting Layer 2 Switching
During the life of a running session, session owners can operate on a VLAN in similar ways as in Template
authoring. The following operations are allowed in the session when it comes to VLAN management:
1. A new VLAN component can be introduced to indicate new VLAN connections between resources.
2. Adding resources into a VLAN by setting proper VLAN IDs or allowing the underlying switch select
the VLAN ID while creating a link between the VLAN component and the resource.
3. Multiple VLAN IDs can be specified on the same VLAN component in the running session. The
specified VLAN IDs can be in the form of range as well.
4. VLAN groups can be accessed from any session
5. Removing resources from an existing VLAN by breaking the virtual link.
6. Remove a VLAN Layer 2 switching component from the session, which will automatically break the
VLANs.
7. VLAN switching is also available when multiple VLAN IDs are available in the session. This allows
an automatic re-allocation of connectivity from one VLAN component to the next without performing
those actions manually.

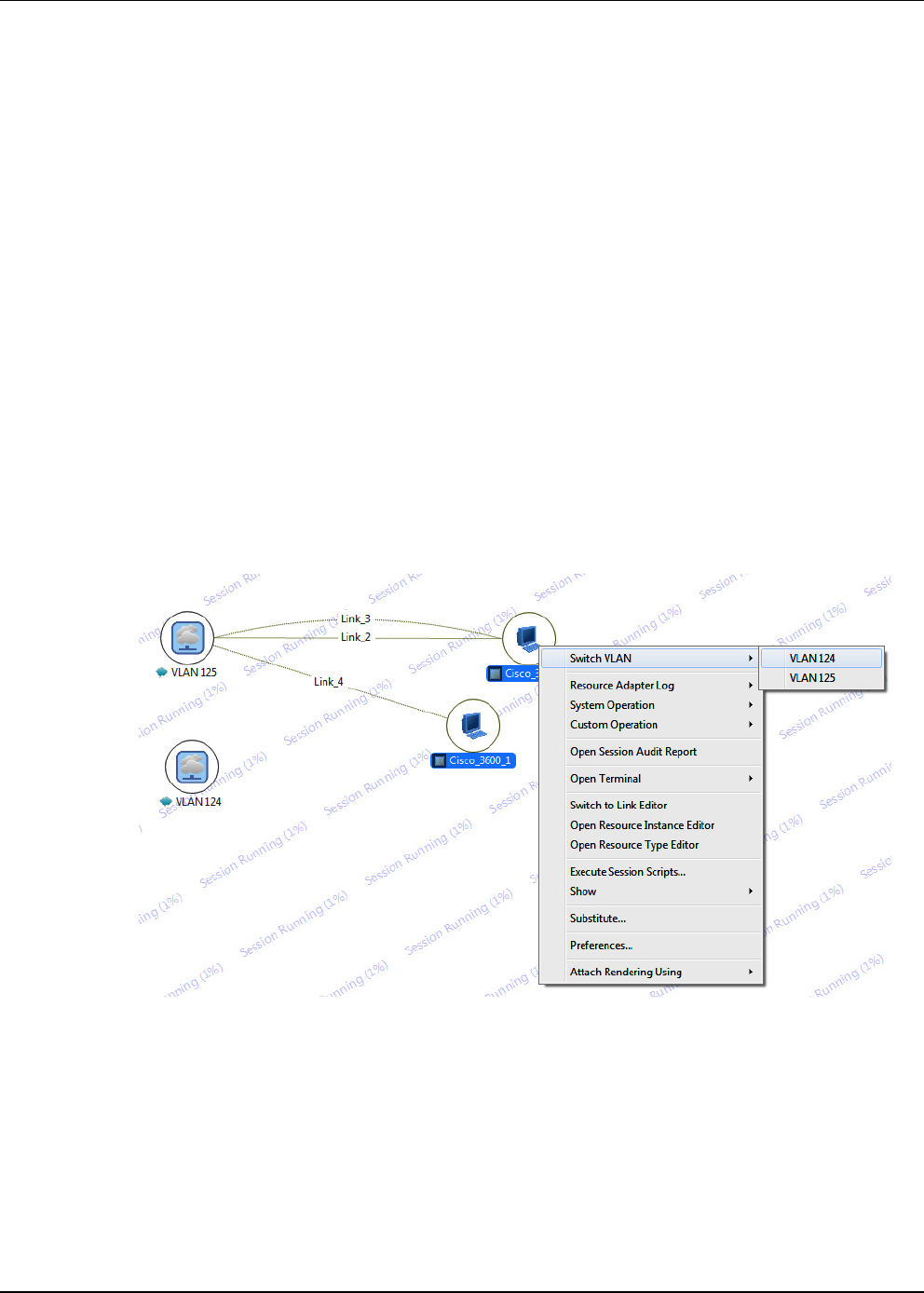

Figure 12-41 Layer 2 Template
