Working with Running Sessions

Session Management 12-35

Displaying Resource Status

To display a resource’s status, perform the following steps:

1. Open a session editor; see the “Opening the Session Editor” section on page 12-9.

2. In the session editor, select a resource and click the Link Editor tab.

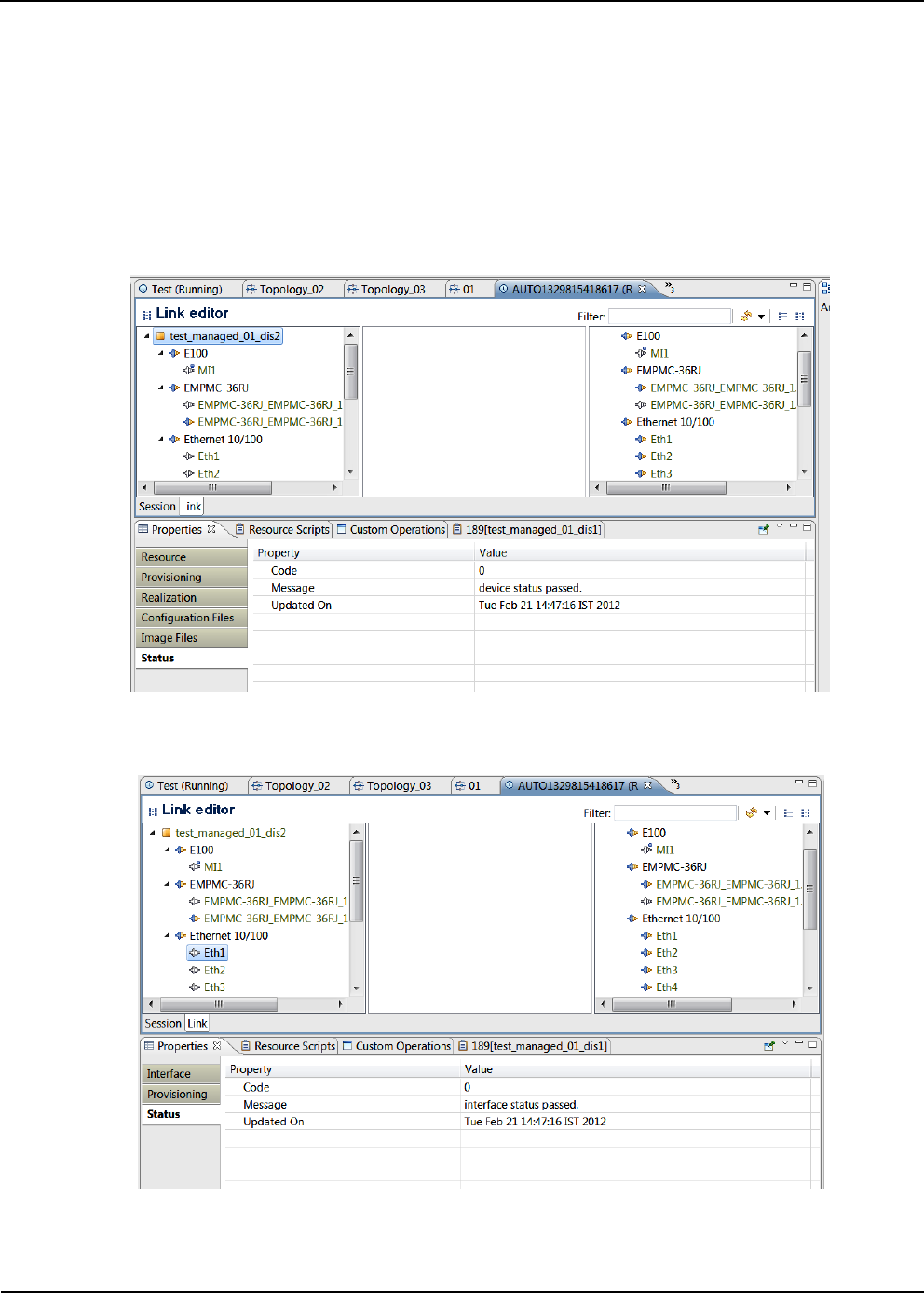

The resource and interface status displays in the label; see Figure 12-31.

Figure 12-31 Resource Status

Figure 12-32 Interface Status
