Working with Running Sessions

Session Management 12-31

Creating Session Links

To create a session link, perform the following steps:

1. Select an interface in the left pane and drag it to the right pane, or from right to left.

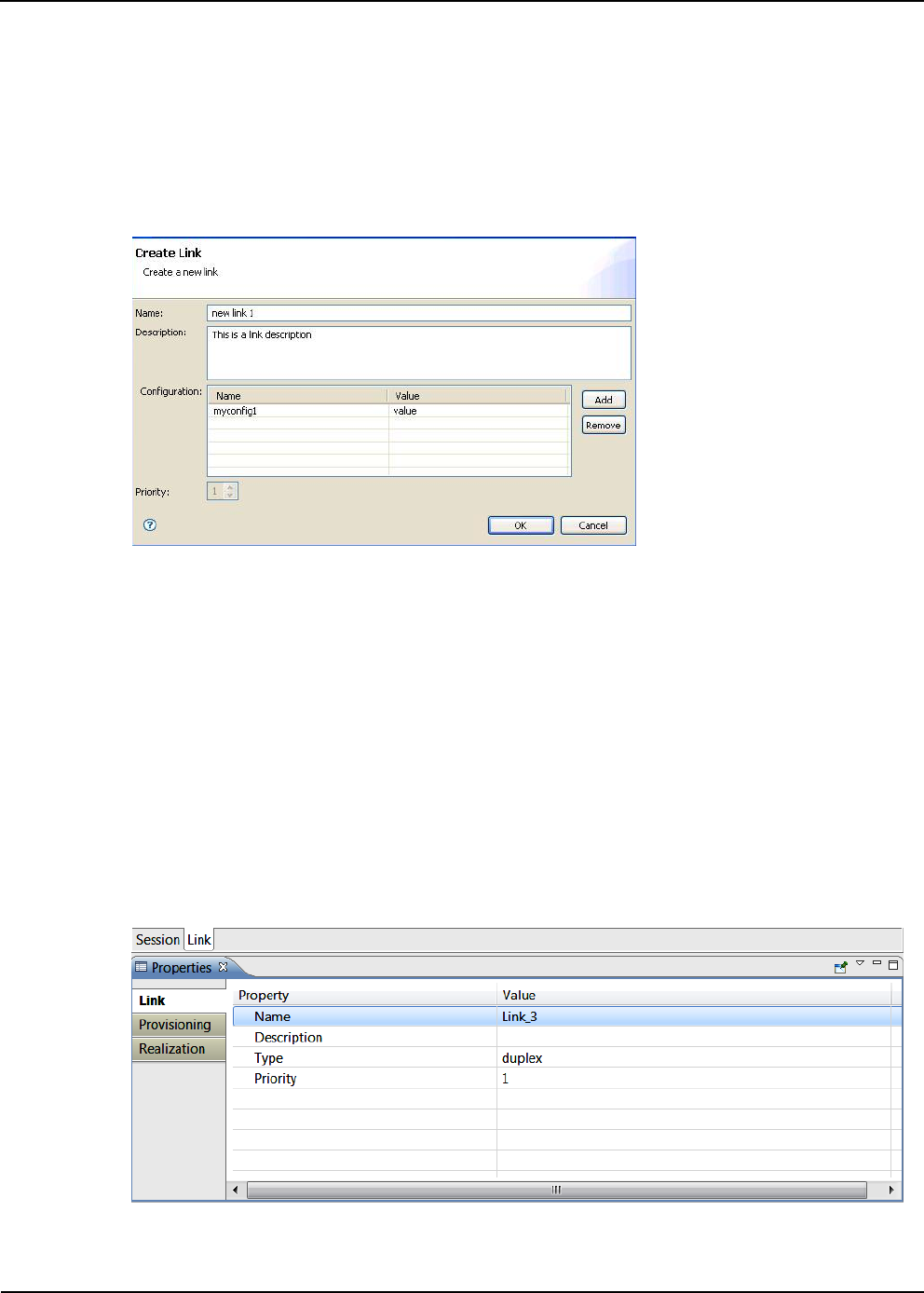

The Create Link dialog box displays; see Figure 12-26.

Figure 12-26 Create Link

2. By default, a link (with assigned properties) is automatically named; for example, Link_n. Link names

must be unique. To change the link name, click the Name field and enter a new link name.

3. Optional. Click the Description field and enter a description for this link.

4. Click OK.

To display link properties, perform one of the following methods:

• In the link editor, select a simple link.

• In the Outline view, select a simple link.

The Link properties display in the Link Properties view—Link tab; see Figure 12-27 for an example.

Session link properties cannot be modified.

Figure 12-27 Link Properties Example
