Working with Running Sessions

12-28 Active System Manager User Guide, Release 7.1

Link Type Selector

Creating links usually defines a link as “Simplex” (the default). On the action bar (see Figure 12-21), you

can set other available options by selecting a link and applying a specific link type. The default is

“Simplex”.

Table 12-6 lists and describes the filters available on the link editor You can identify the different types of

links (through their link end point decorations); see each respective figure for each link type to view the

end point decorators.

Table 12-6 Link Editor Filter Options

Icon Description

Allows links to go in one direction; see Figure 12-22.

Allows links to go in both directions; see Figure 12-23.

Allows links to go to multiple receivers; see Figure 12-24.

Allows the source end of the connection into move to multiple directions; see Figure 12-25.

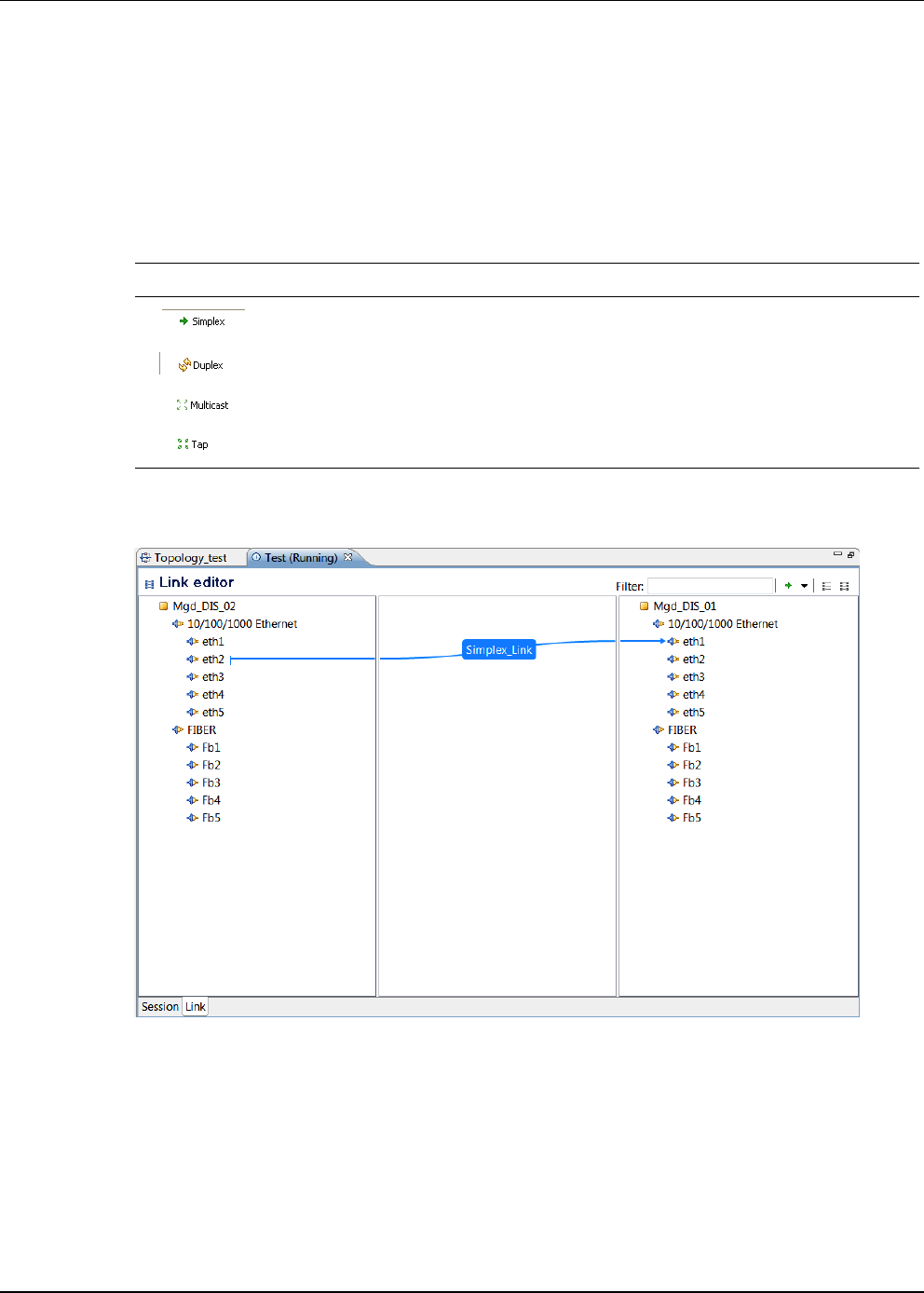

Figure 12-22 Simplex
