Working with Running Sessions

Session Management 12-11

Viewing the Session Realization Information

When opening a session editor for a running session, you can view the session realization information. The

realization phase is where the Active System Manager system builds, provisions, and interconnects the

resources for the defined requirements.

For example, the editor can indicate the following results on the Realization tab (for each resource and

link):

• Power Off Resources are displayed as grayed-out; see Figure 12-6.

• Resource Instance Realization Error displays in red and are outlined; see Figure 12-7.

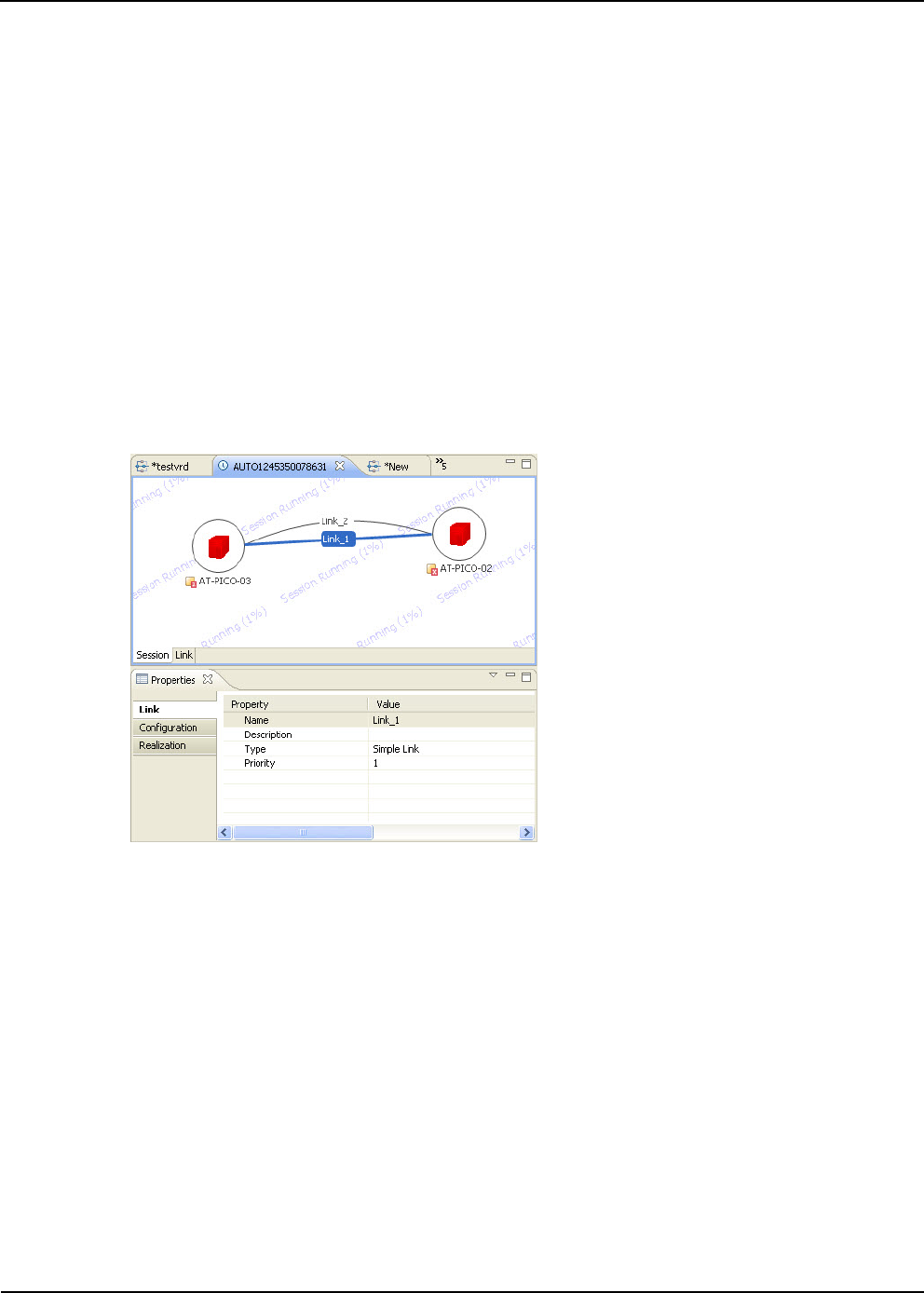

• Unrealized Links (simple) are marked in red and are outlined; see Figure 12-8. You can retry or discard

a failed link. To display the properties of the link, select the desired link in the Template tree or select

the line representing the link in the

Template window. The properties are displayed in the Properties

view.

Figure 12-6 Power Off Resources Displayed
