Working with Running Sessions

12-10 Active System Manager User Guide, Release 7.1

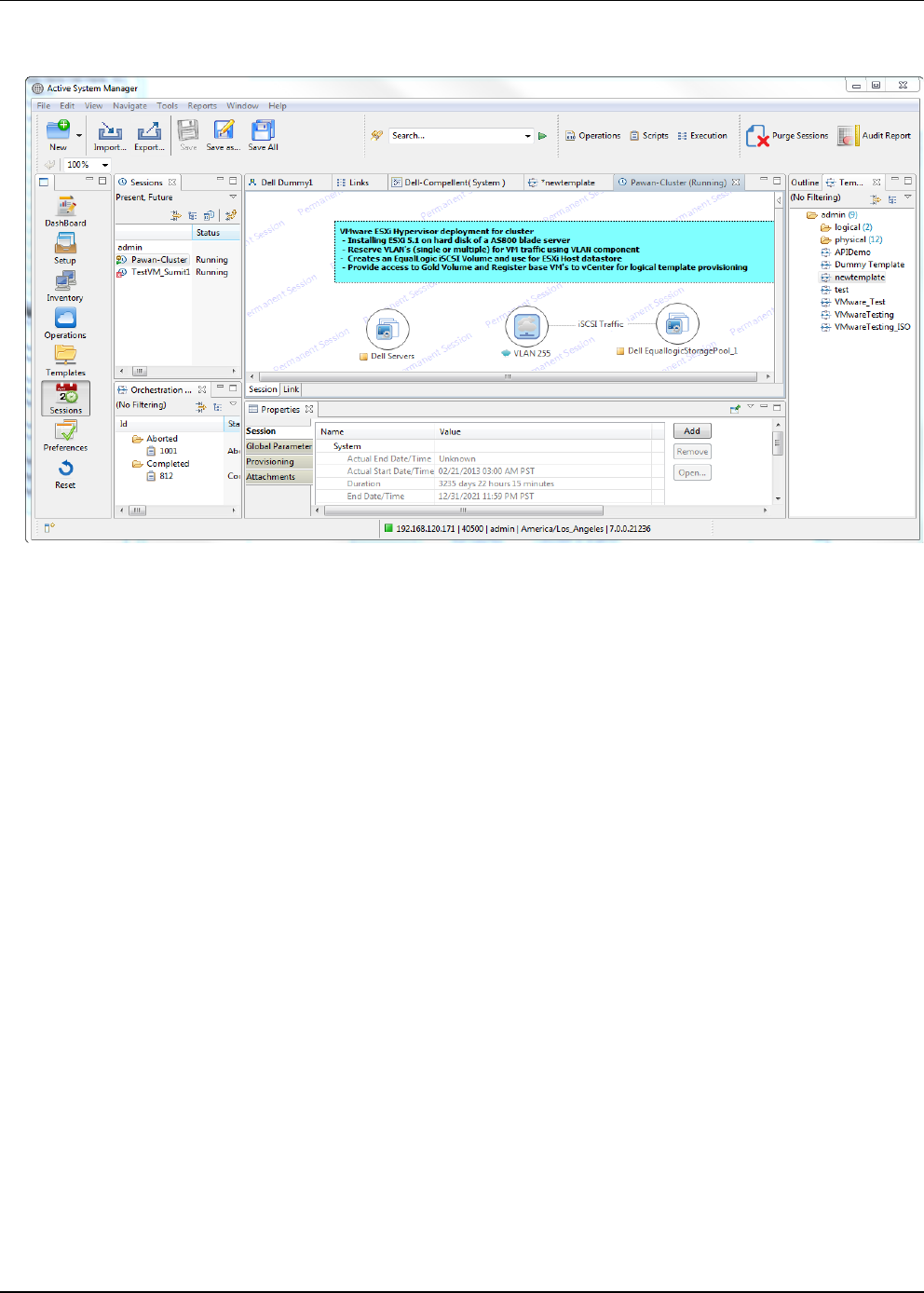

Figure 12-5 Opening Session Example

Using the Session Outline View with the Session Editor

The Session Outline view content that lists the resources and links can be customized using the Show icons:

• Show Outline—The default outline view content. Lists all resources and links in the session editor.

This session outline is bidirectional (selecting an element from that view automatically selects the

element from the editor).

• Show Overview—Displays a graphical overview of the Template. Allows you to navigate large

Template content in a graphical manner.

• Show Elements—Displays all resources with associated configuration and image files that were used

at realization time. There are no links that can be found.

• Show Hosts—Displays relationships between virtual resources and their hosted environment. There are

no physical resources, nor links that can be found.
