Working with Templates

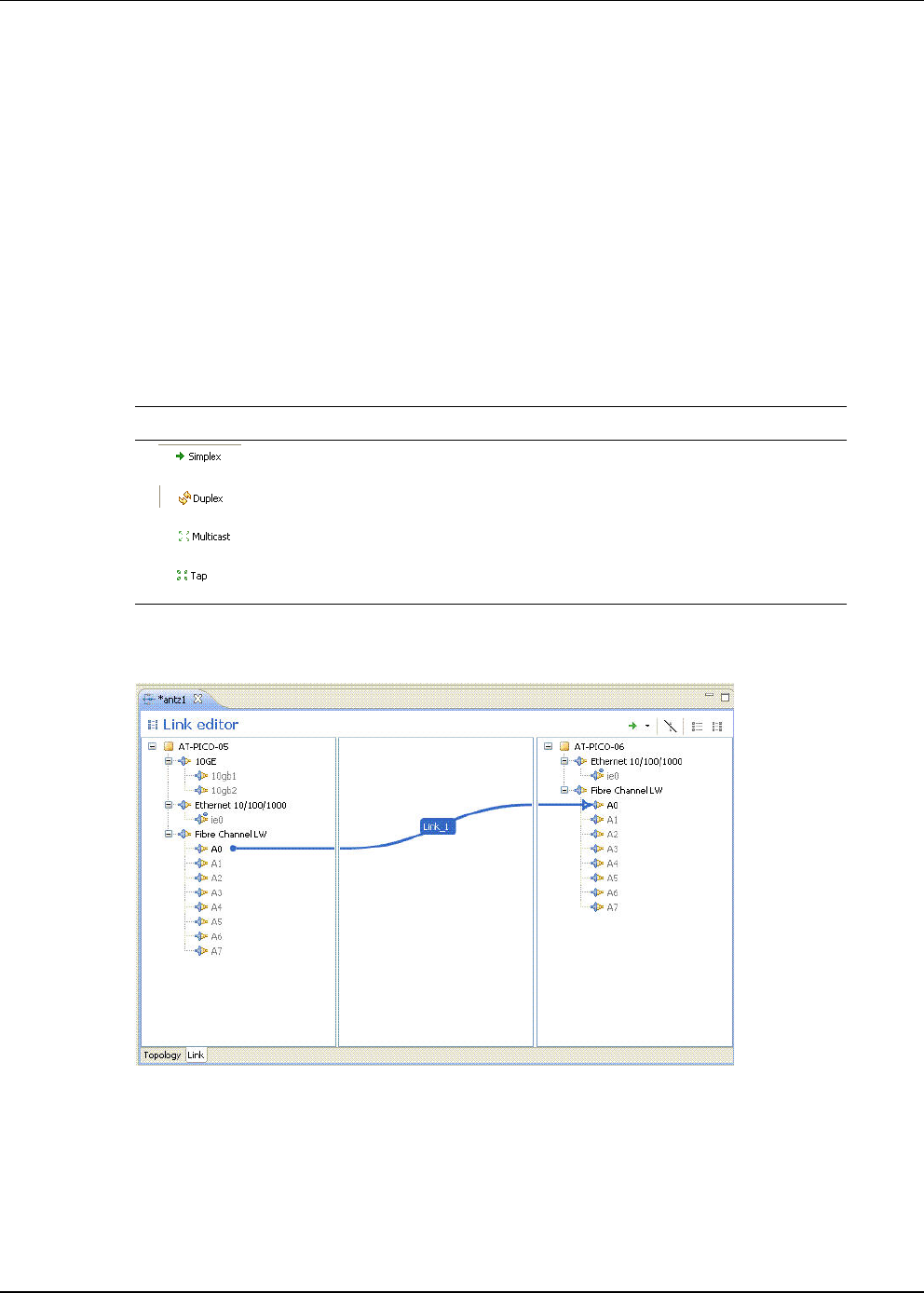

11-48 Active System Manager User Guide, Release 7.1

Quick Filtering

In the Filter text box (see Figure 11-26), enter a string to search and filter out elements on the right pane

content. This is useful when working with a large set of resources and the focus is on specific end-devices

and connectivity.

Link Type Selector

Creating links usually defines a link as “Simplex” (the default). On the action bar (see Figure 11-26), you

can set other available options by selecting a link and applying a specific link type. The default is

“Simplex.”

Table lists and describes the filters available on the link editor. You can identify the different types of links

(through their link end point decorators); see each respective figure for each link type to view the end point

decorators.

Link Editor Filter Options

Icon Description

Allows links to go in one direction; see Figure 11-27.

Allows links to go in both directions; see Figure 11-28.

Allows links to go to multiple receivers; see Figure 11-29.

Allows the source end of the connection into move to multiple directions; see

Figure 11-30.

Figure 11-27 Simplex
