Working with Templates
Template Management 11-47
For all annotation functions:
• The properties display in the Pr
operties tab, where you can assign (or modify) the Border and Fill
parameters, such as font style, font size, color, line style, line width, and opacity.
• You can set the default preferences for those properties in the Preferences dialog box (click W
indow >
Preferences > Template > Template Editor > Annotations).
Updating Templates using the Link Editor
The link editor is an editing tool used to author resource or resource type interfaces and create connectivity

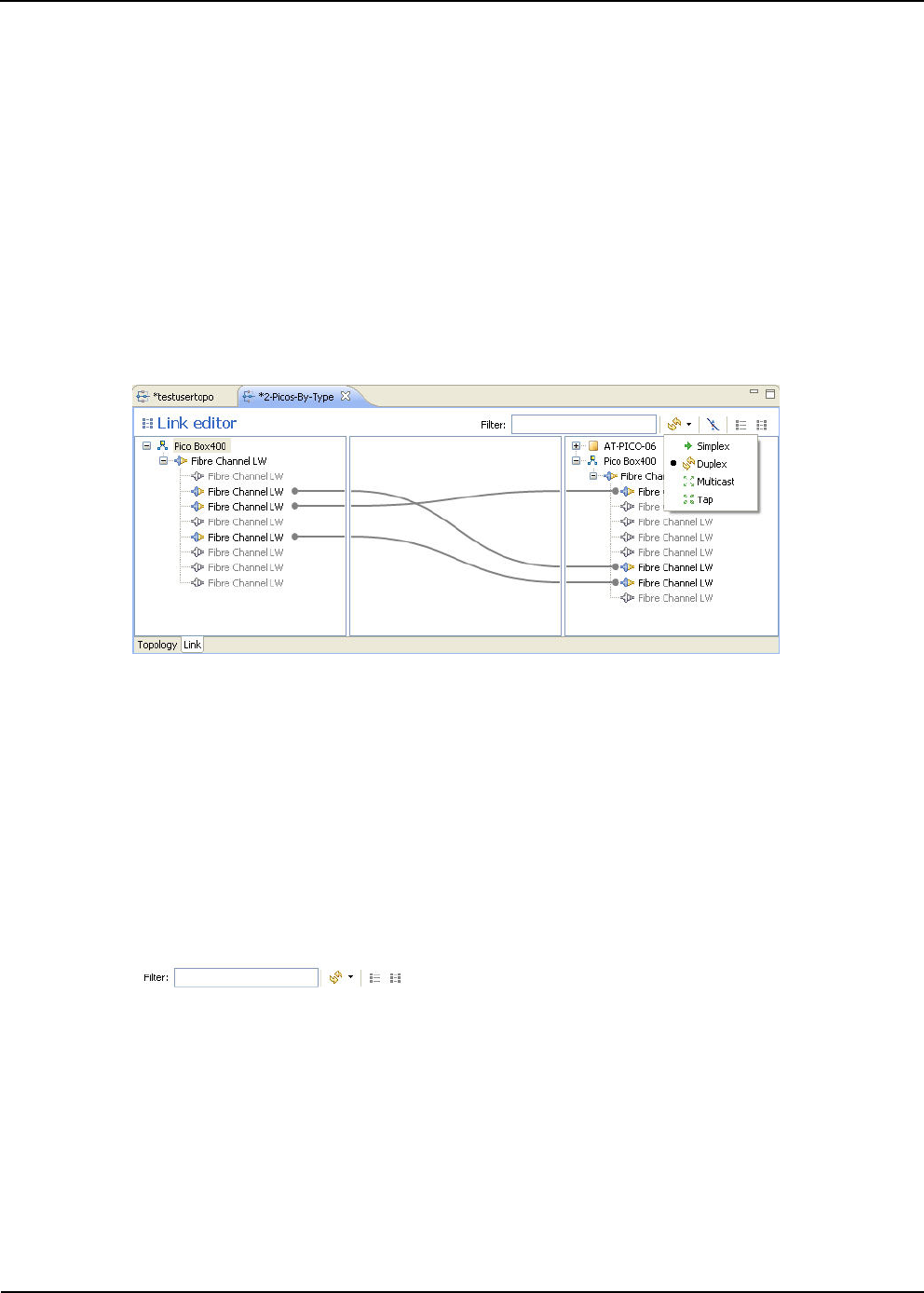

between resource elements. Figure 11-25 displays an example of the link editor.
Figure 11-25 Link Editor Example
Common Features of the Link Editor
Below are some of the common features of the link editor:
• The link editor comprises three parts: a left pane with the selected element, the middle pane that displays
any links, and the right pane that displays the other elements in a tree view.
• The top action bar (see Figure 11-26) that allows you to define link types, as well as building better
connectivity.
Figure 11-26 Top Action Bar—Link Editor
• When you create a link in the link editor, the links also display in the Template editor. To avoid
confusion, the link editor displays links from left to right. The right pane displays the connectivity from
one resource to another, but the source is unknown. To find the source, in the right pane, select the
resource, right-click, and select Move to Left. The resource moves to the left pane.
• You can share the resource; for example, you can request the scheduler to allow for a subset of the
interfaces.
• While the link editor is the primary place to create links, you can also create links in the Palette view,
which is only displayed in the Template editor.
