Working with Templates
Template Management 11-45

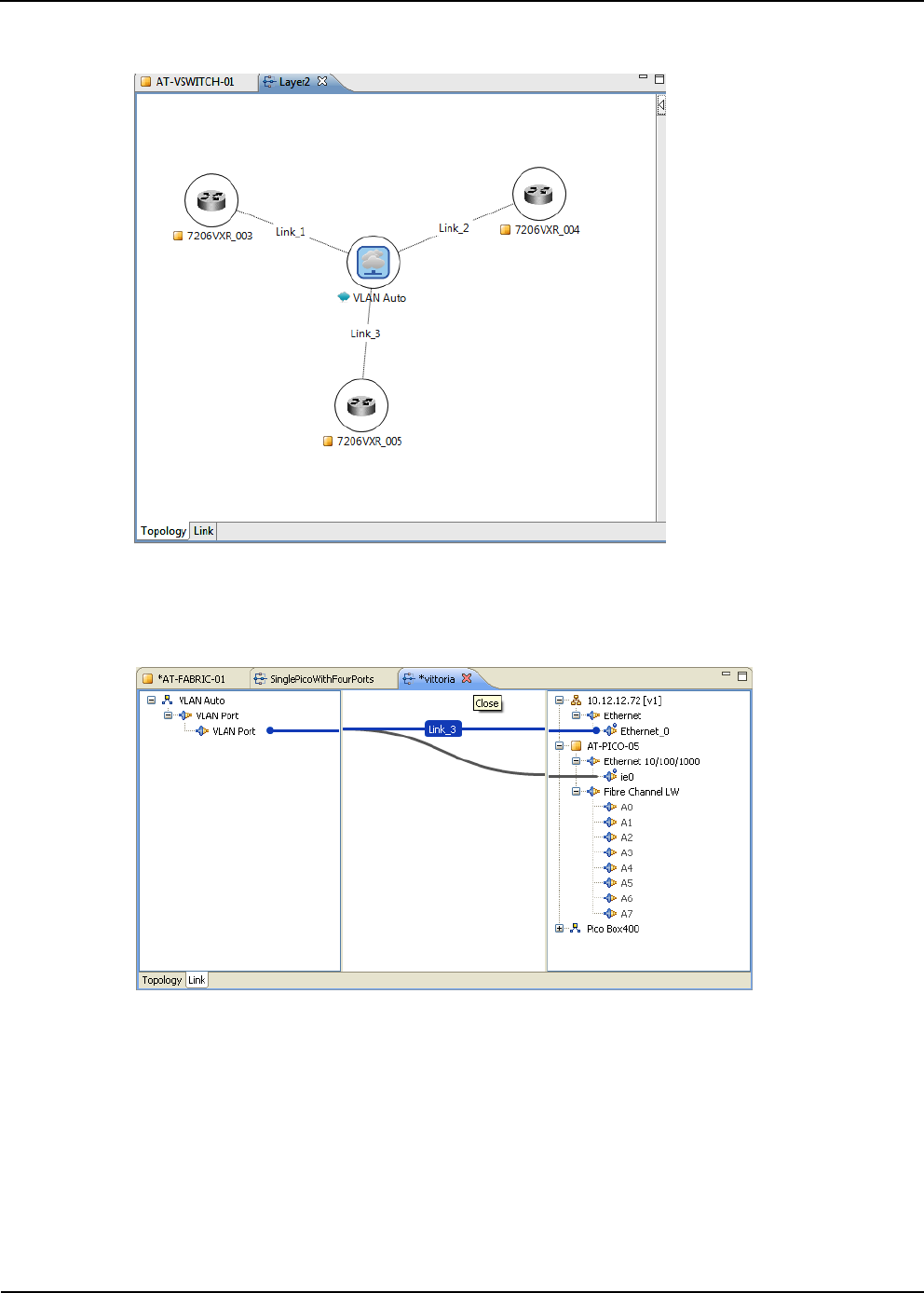

Figure 11-23 Enabling VLAN in Template
4. Switch to the Link editor; see Figure 11-24.
Figure 11-24 Link Editor VLAN Display
5. Set the VLAN ID either implicitly (the default behavior) or explicitly (user-defined).
a. In the Template editor or link editor, select the VLAN component.
b. In the Properties view, perform the following actions:
• Provisioning—Click the Provisioning tab and set the values of the following Provisioning
properties:
