Working with Templates
Template Management 11-43

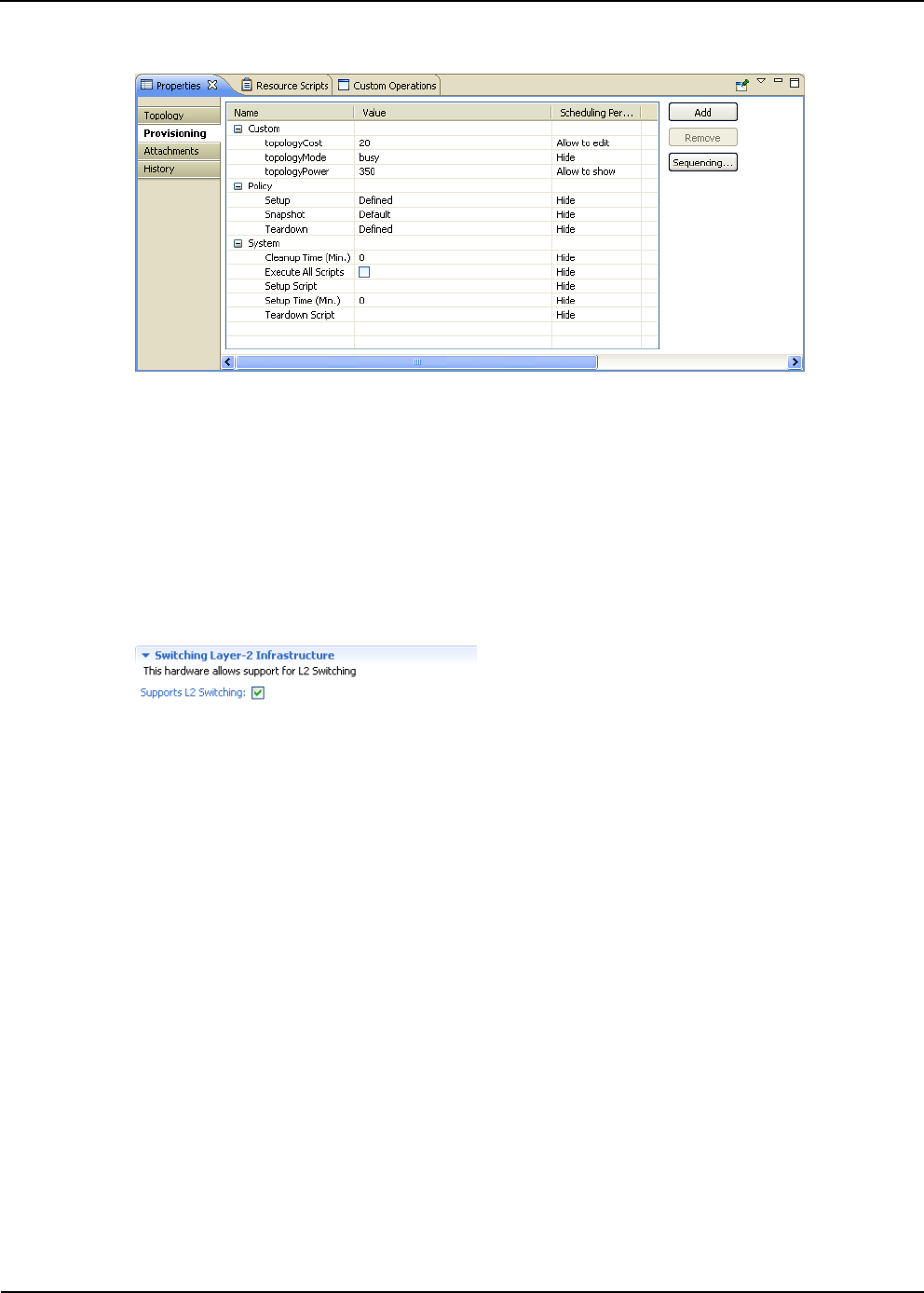

Figure 11-21 Provisioning Policy Status
Supporting Layer 2 Switching
Contrary to Layer 1 switch management, where Layer 1 switches are entered in the inventory as
control-based resources and underlying physical connectivity must also be pre-defined, Layer 2 switching
requires inventory. At least one Layer 2 switch must be defined in your inventory with the Matrix Switch
role that supports the VLAN option (enabled; see Figure 11-22) and optional VLAN IDs (in custom
inventory properties).
Figure 11-22 Supports VLAN Option Check Box
For more information about supporting Layer 2 switching, see the following subsections:
• Setting Up Layer 2 Switching
• Defining Templates with VLAN
Setting Up Layer 2 Switching
To set up your Layer 2 switching, perform the following steps:
1. Open your Resource Instances view, select a resource instance of role Matrix Switch. Use filters to
search for such resource instances; for more information about filtering, see the “Filtering” section on
page 1-12.
2. Ensure that you have a resource instance with the Supports L2 Switching check box enabled.
The Supports VLAN check box is located in the resource instance editor. It is only available when the
role is set to Matrix Switch.
The values for the matrix switch can be defined in three different formats:
• Individual Value—For example: (10,11,12,15,17).
• Value Range—For example: (10..15), (25..34).
• Group Value Range—For example: {gp1}(10..20), {gp2}(21..30), {gp1}(31..40).
