Introducing the Setup Perspective

Repository Management 9-3

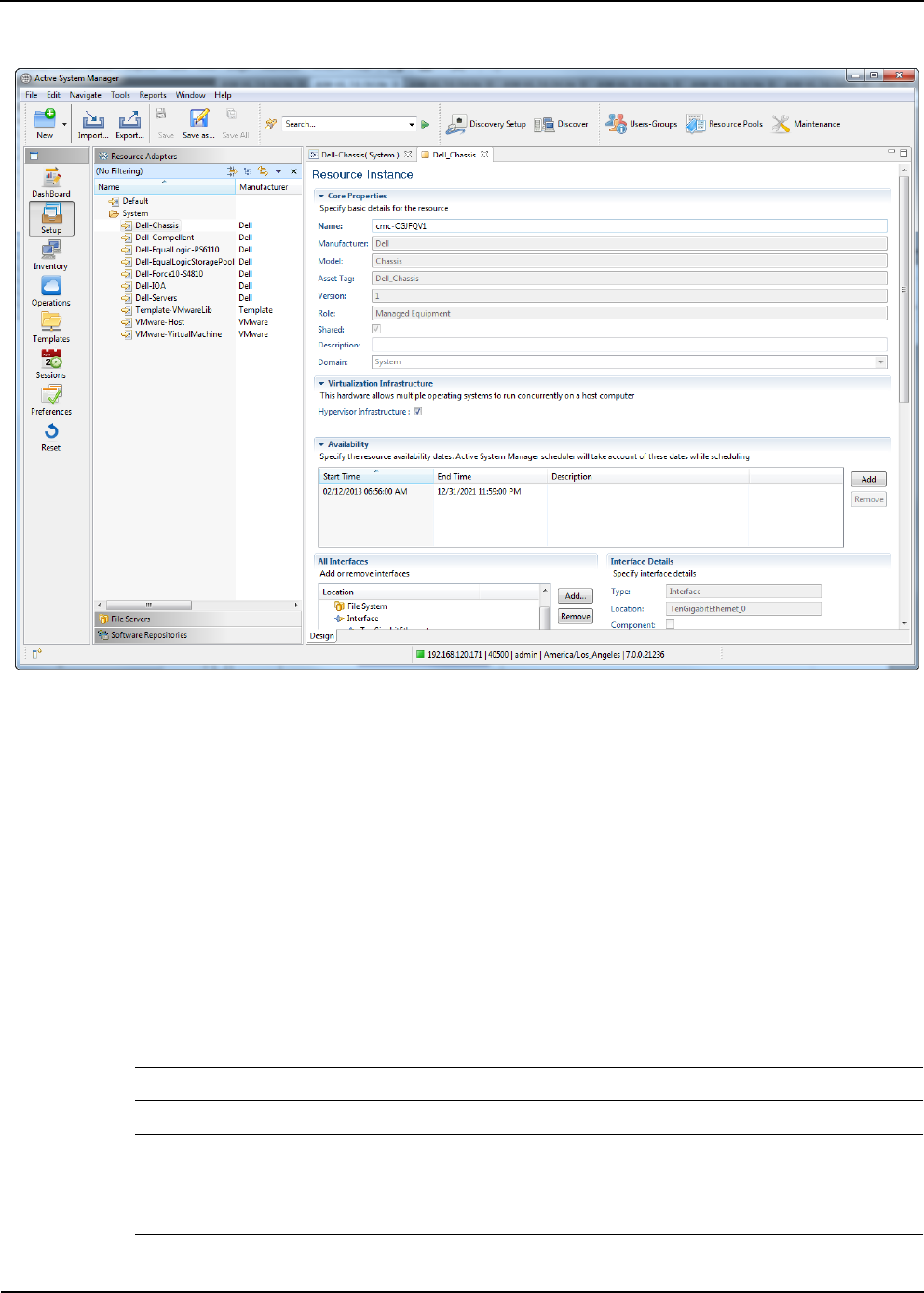

Figure 9-1 Setup Perspective

The Active System Manager software allows for management and visibility of each repository content,

particularly related with operating system (OS) images and configuration files via the Setup perspective. A

repository is a collection of organized files called elements to be used to provision a resource under test.

The Active System Manager software supports three repository types that are used during the Active

System Manager process at Template and session times:

• File servers

• Storage arrays

Each type supports a wide range of standard protocols (File Transfer Protocol [FTP], Secure File Transfer

Protocol [SFTP], Trivial FTP [TFTP], Hypertext Transfer Protocol [HTTP], and Secure HTTP [HTTPS])

to communicate with the repository from the Active System Manager application. Table 9-2 lists and

describes repository support available.

Table 9-2 Repository Support

Element Operations

Type Protocol Discover Import Export Delete Validate getVersions

File servers FTP Yes Yes Yes Yes Yes No

SFTP Yes Yes Yes Yes Yes No

TFTP No Yes Yes No Yes No
