User's Manual

Managing Virtual Resources
Inventory Management 5-71

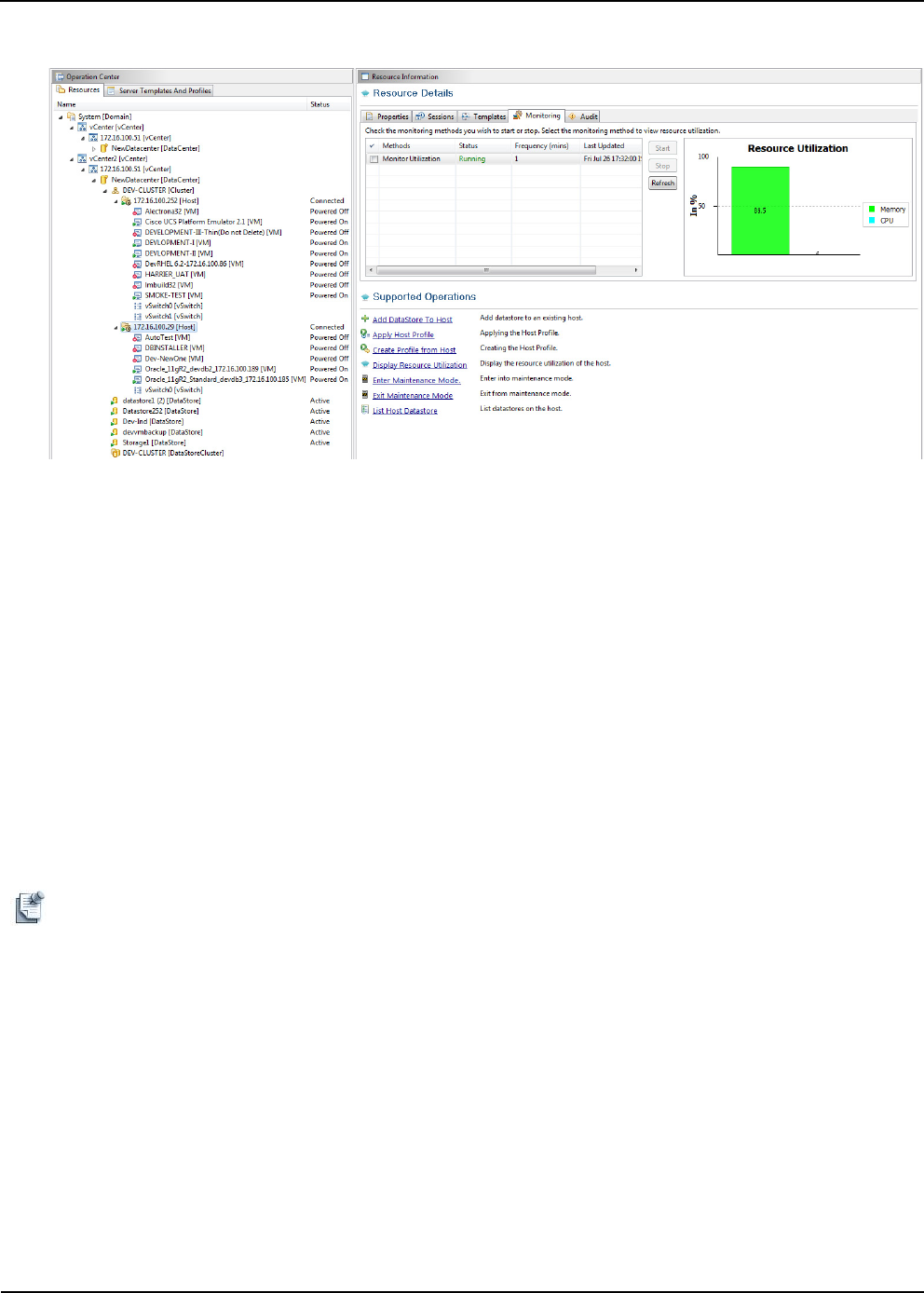

Figure 5-44 Monitoring Resources
Editing Data Flow Values
The Active System Manager software allows you to edit parameter values while executing a virtual
operation from the Operation Center view.
To edit data flow values, perform the following steps:
1. Right-click any node or resource type in the Operation Center view.
The list of virtual operations applicable on the selected resource type display.
Select the operation to perform from the list of menus; for example, select Create Mac Pool.
The Create Mac Pool dialog box contains the following two panes:
• Parameters Pane: Contains general execution details such as operation names and the Value field
for entering values against input parameters. You can either enter these parameter values in the
Value field manually or by selecting a value from the Possible Values pane.
Note The star pre fixed in the icons (in the Name column - Parameters section), indicates mandatory
values that you must enter.
• Possible Values Pane: Displays all elements contained in selected the Value Source. The
information related to the Primary and Secondary Source is already embedded in a specific RA. If
required, this panel allows you to select values from the Primary Source and Secondary Source
drop-down list.
2. Select a parameter in the Parameters pane.
3. Click Primary Source In the Possible Values pane, and select the Value Source for the selected
parameter; for example, select Software Repository.
