Managing Virtual Resources

Inventory Management 5-63

the highest level of datacenter, down to the individual VM.This is presented in a hierarchical manner in the

vCenter hierarchy, Operation Center view, see Figure 5-36.

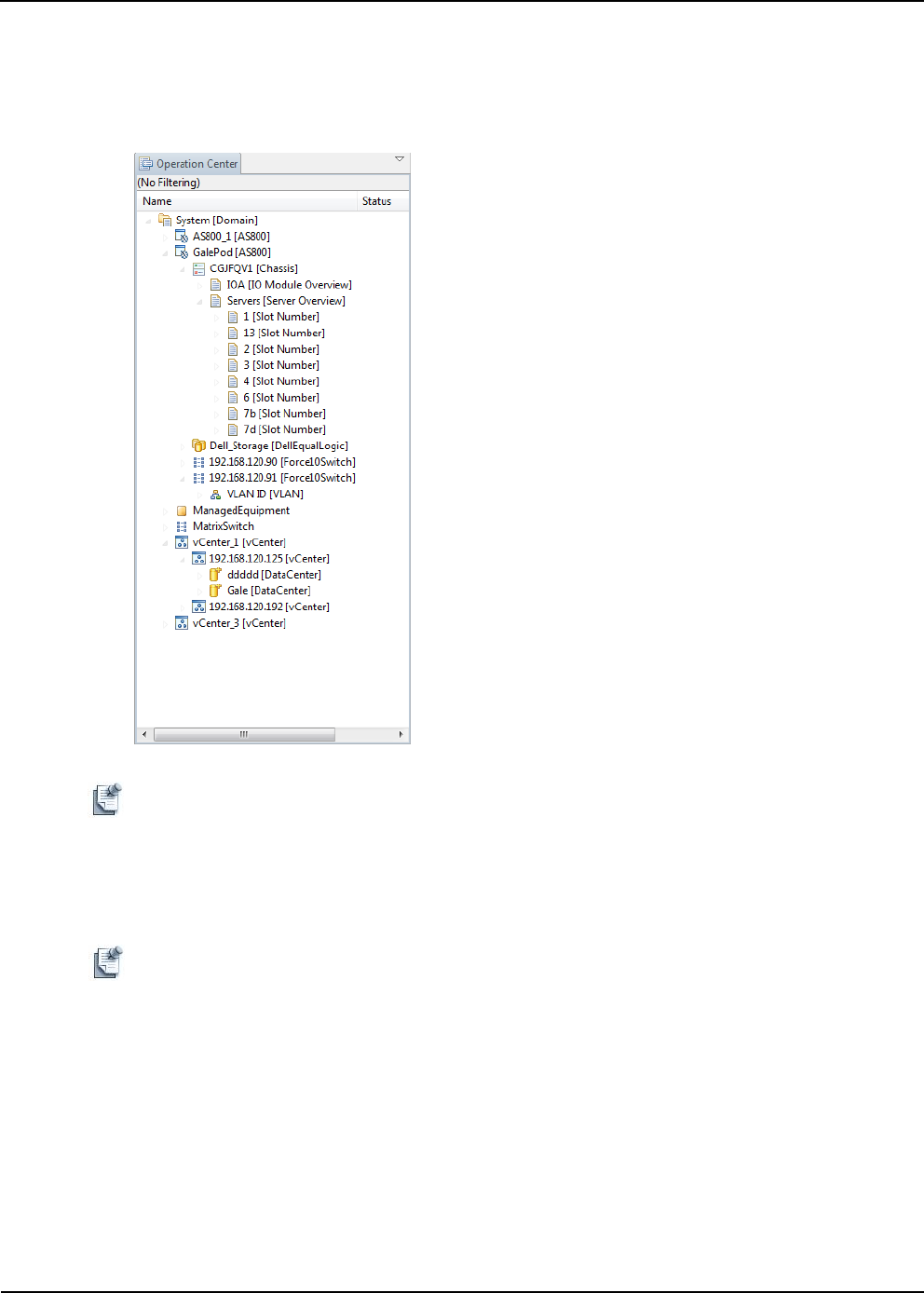

Figure 5-36 vCenter Hierarchy in Operation Center View

Note Figure 5-36 displays the typical hierarchical scenario of vCenter objects. However, there may exist

scenarios where the root level of objects may vary depending upon the object type.

Navigating Operation Center View

Note By default, the Operation Center view is a part of the Inventory perspective.

To navigate to the Operation Center view, on the Active System Manager menu bar, click Window > Show

View > Operation Center.
