Linking Resources

Inventory Management 5-37

Using Resource Links

You specify connections (links) between the following types of resources and resource components:

• Resource power supplies and power controllers

• Resource console ports and terminal servers

• Resource interface ports and matrix switches

• Resource interface ports and patch panels

• Resource interface ports and other managed resource interface ports

Creating Links Between Resources

When you create a link, the Inventory perspective compares the two associated ports against the following

general conditions:

• Are both interface ports compatible?

• Are both interface ports available?

• Are both interface ports currently unassigned to a link?

• Are you trying to link an interface port to itself?

Note You must create and associate an interface type before you can create the associated link. For more

information, see the “Using Resource Interface Types” section on page 5-31.

To create a virtual link to network environment resources, perform the following steps:

1. On the Active System Manager menu bar, click Tools > Links > Edit.

The Links editor displays; see Figure 5-22.

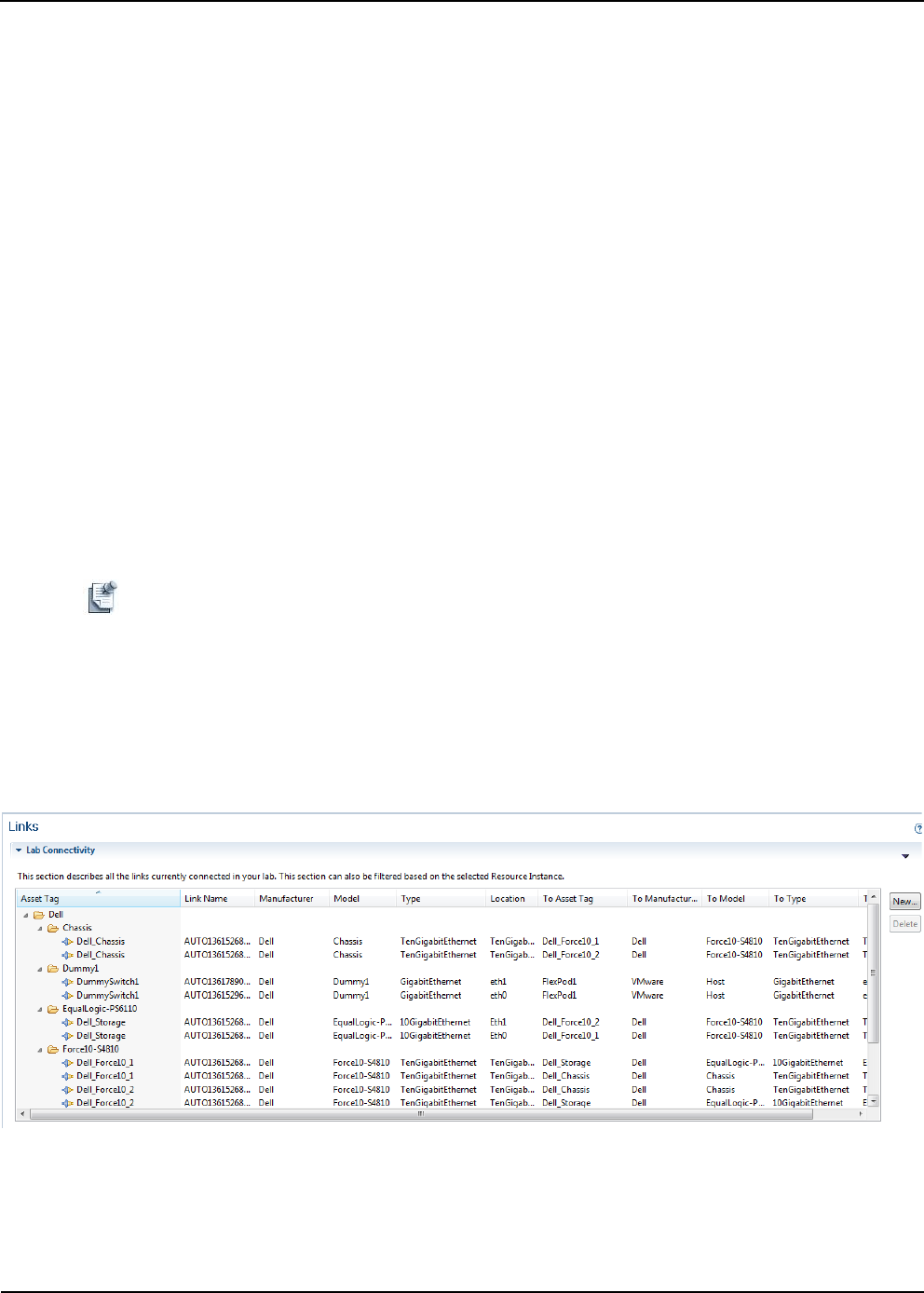

Figure 5-22 Links Editor
