Appendix E—Adding New ESXi ISO Images
This appendix describes the following topics related to adding new ESXi images:
• Download Image ISO
• Modifying the ESXi boot.cfg Configuration File
• Creating a Kickstart Configuration File
• Adding the new image to the software repositories
Preparing the VMware ESXi 5.x Installation Media
To prepare the VMware ESXi 5.x installation media, perform the following steps:
Download Image ISO
1. Login to www.dell.com
2. Open the support and driver page
http://www.dell.com/support/drivers/us/en/04/ProductSelector/Select?rquery=fke
y-e-Drivers_PS
3. Select Server, Storage & Networking
4. Select PowerEdge
5. Select PowerEdge M620
6. Select VMware ESXi 5.1

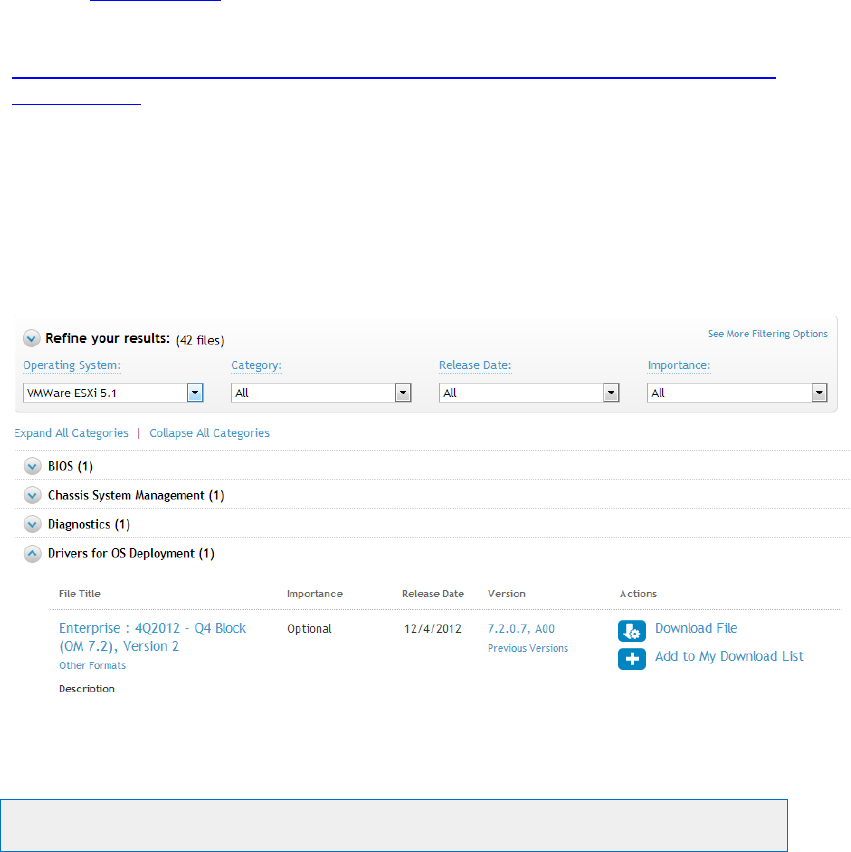

7. The image will be listed under section “Drivers for OS Deployment”
8. On your Active System Manager appliance server, simply extract the contents of the
installation ISO into a new directory using the following commands (login as “root”
user”) :
# mkdir /tmp/dellISO
