80

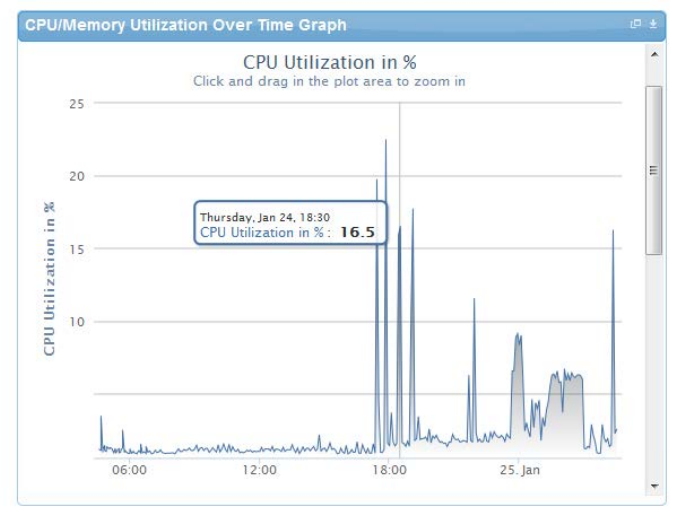

Figure 33 displays an example of a CPU and Memory Utilization Showback report.
CPU & Memory Utilization Showback Report Figure 33.
You can view the data for a specific time interval (with a minimum time interval limit of ten
minutes between two data points). To view the specific time interval data, select a point
and drag the mouse to a desired data point; this will show the data for the specific time
interval. You can rest the time interval to default by clicking Reset Zoom (see Figure 34).
