Storage Utilization (Consolidated) Report
This report provides storage utilization as a percentage of allocated storage for clusters.

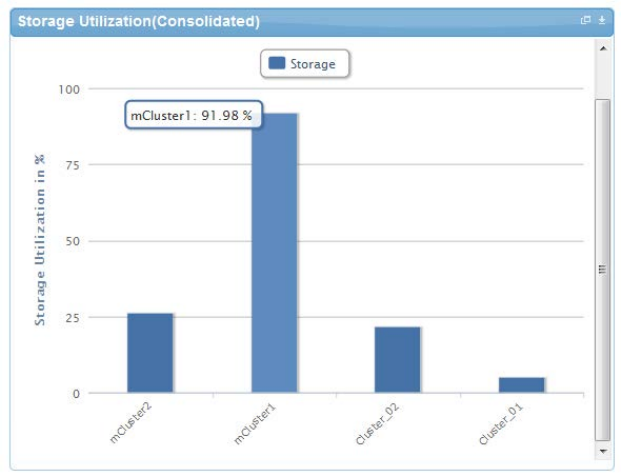

Figure 32 displays an example of a Storage Utilization (Consolidated) Report.
Storage Utilization (Consolidated) Report Figure 32.
CPU and Memory Utilization Showback Report
This report provides CPU and memory utilization of Hosts in percentage over a period of
given time (e.g. Weekly, Daily, and Hourly).
