78

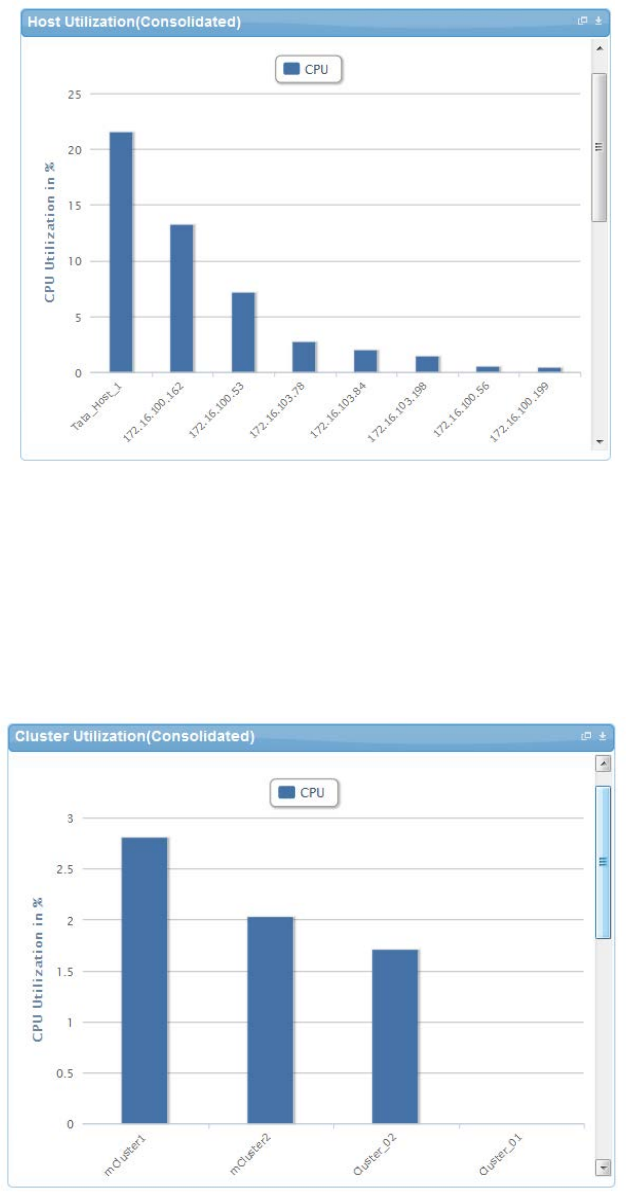

Figure 30 displays an example of a Host Utilization (Consolidated) report.
Host Utilization (Consolidated) Report Figure 30.
Cluster Utilization (Consolidated) Report
This report is similar to the Host Utilization (Consolidated) report, except that it works for
clusters.
Figure 31 displays an example of a Cluster Utilization (Consolidated) report.
Cluster Utilization (Consolidated) Report Figure 31.
