77

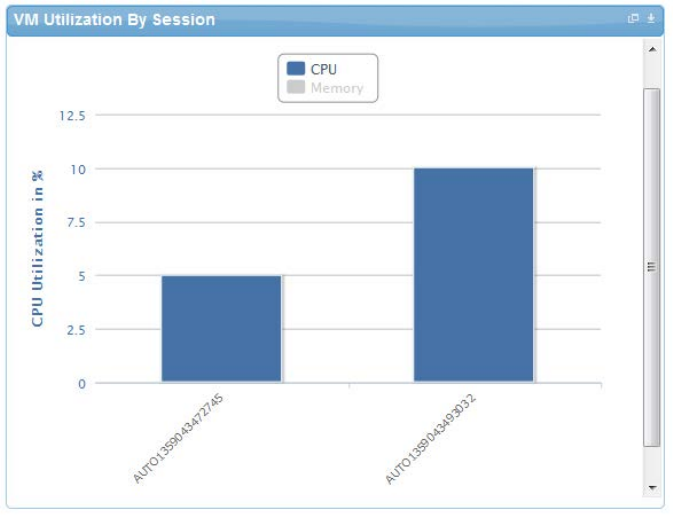

Figure 2930 displays an example of a VM Utilization by Session Report.
VM Utilization by Session Report Figure 29.
Host Utilization (Consolidated) Report
This report displays information about how much capacity is being utilized on a host by all
running VMs, with respect to the allocated capacity. This report is available for CPU and
memory attributes.
