73
Resource Allocation by Hosts Report
This report provides resource allocation data for hosts on which some virtual resources are
provisioned in running sessions. This report displays CPU and memory allocations grouped by
hosts, and can be used to view a current usage of the CPU and memory allocation per host
for a data center.

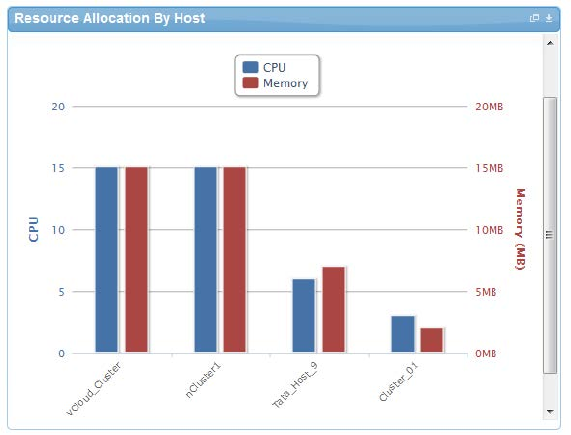

Figure 25 displays an example of a Resource Allocation by Hosts report.
Resource Allocation by Hosts Report Figure 25.
Resource Allocation by Groups Report
This report provides resource allocation data for virtual resources that are utilized in
sessions owned by members of a group (grouped by group name). This report also captures
the current allocation by groups and works for CPU and memory allocation.
Figure 26 displays an example of a Resource Allocation by Groups report.
