Dashboard Reports
The Active System Manager Dashboard displays allocation and utilization graphs for various
resources like VM, cluster, host, storage, and so on, including:
• Resource Allocation by Sessions Report
• Resource Allocation by Hosts Report
• Resource Allocation by Groups Report
• Top Ten Resource Allocation Report
• Top Ten Resource Utilization Report
• VM Utilization by Session Report
• Host Utilization (Consolidated) Report
• Cluster Utilization (Consolidated) Report
• Storage Utilization (Consolidated) Report
Resource Allocation by Sessions Report
This report provides resource allocation data for sessions which are in a Running state. This
report displays CPU and memory allocations grouped by Active System Manager sessions, and
can be used to view the CPU and memory allocation in a data center environment at that
particular instant.

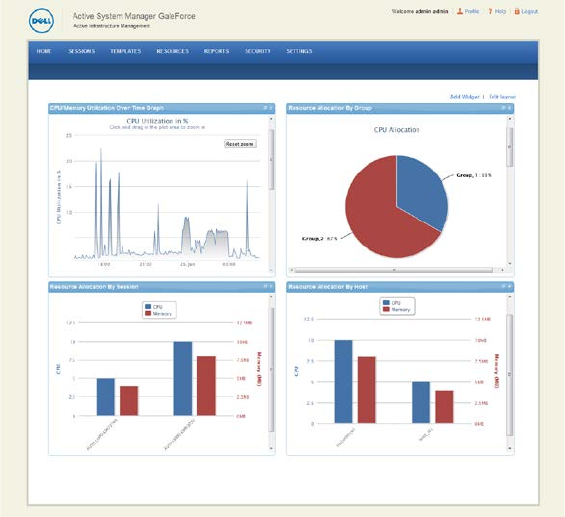

Figure 2425 displays an example of a Resource Allocation by Sessions report.
Resource Allocation by Sessions Report Figure 24.
