67

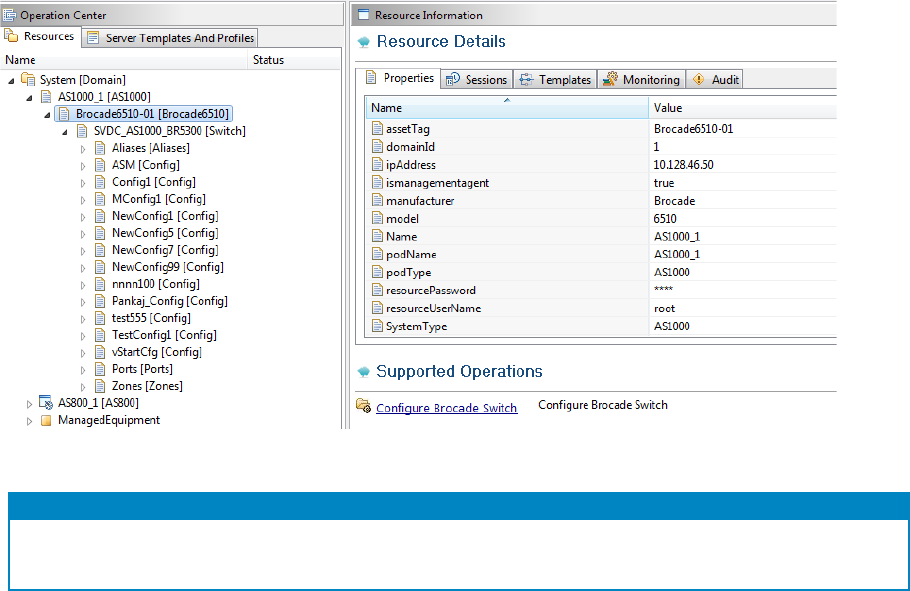

Brocade Switch view Figure 19.
Table 11. Brocade Switch operations
Operation
Description
Configure Brocade Switch
This method is used to upgrade or downgrade a firmware version
on a Brocade switch. Also method can be used to update the
switch configuration.
Managing VMware vCenter Objects
This section describes operations that can be performed from Operation Center view on
following VMware vCenter managed objects:
• VMware Clusters
• VMware Hosts
• VMware Virtual Machines
• VMware Datastores
VMware Clusters
VMware Clusters along with their attributes are discovered and populated in the Active
System Manager Operation Center view. This view (Figure 20) enables methods to be
executed on clusters for on demand provisioning, as required.
