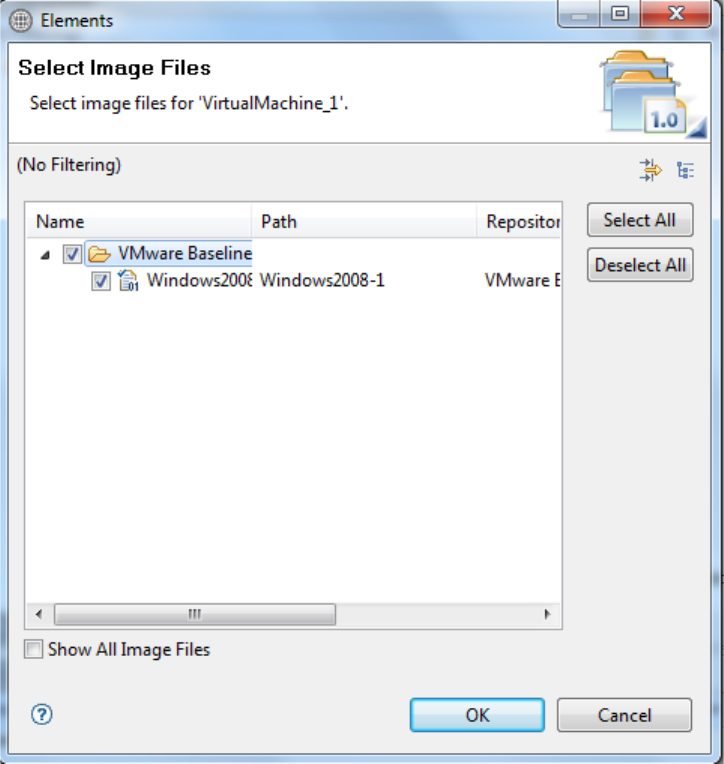

3. Click Add and select the gold VM image to be associated with the VM object.
Customizing the Guest OS (Optional)
Active System Manager supports Windows 2012 and Windows 2008 based Guest OS for VM
creation. However, during Windows 2008 VM creation, Active System Manager is not able to
retrieve the VM IP address. In this case, the Windows 2008 VM does have an IP address, but
Active System Manage is not able to retrieve the IP address using the supported API set.
In order to customize the Operating System that will be on the VM, complete the following
steps.
1. Open the logical template.
2. Select VirtualMachine object.
3. In the Provisioning tab, in the Guest Customization section update the following
properties:
a. GuestDNSDomain
b. GuestHostName
