60
• Once the VMs are provisioned the user can also launch custom applications as
applicable using custom methods from Active System Manager- Windows client.
• For Application launch,
• Select a VM in a session
• Right click on the VM
• Select the Applications
• Select the Application to be launched

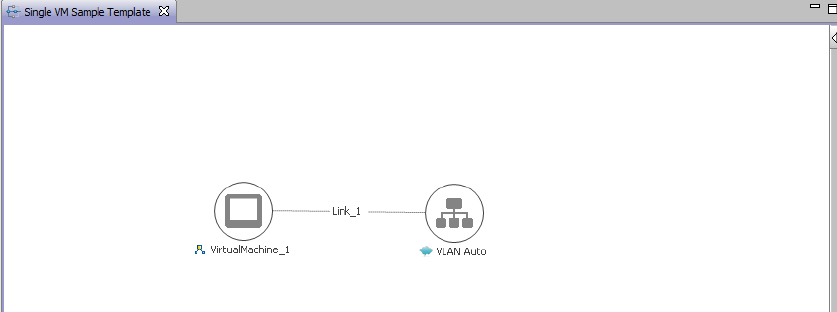

Single Virtual Machine with a VLAN
The Single VM Sample template (Figure 15) can be used to create VM workloads by
scheduling logical template over existing physical resources session, to consume the
compute and storage resources of specific physical components.
Single VM Connected to a VLAN Figure 14.
When scheduled, this template performs the following sequence of operations:-
• Clones and powers on a single VMware VMs based on the Gold VM image associated
in the template.
• Creates port-groups corresponding to a VLAN component on the vSwitch
• Once the VMs are provisioned, you can also launch custom applications using custom
methods from the Active System Manager Windows client.
Updating a Baseline VM Image on Logical Templates
To update the baseline VM image associated with the VM object in the template, perform
the following steps:
