Workload Provisioning Using Logical Templates
This section describes the following workload provisioning options using the Logical
templates:
• Pre-requisite to provision a Virtual Machine
• Two VMs with a VLAN
• Single Virtual Machine with a VLAN
• Updating a Baseline VM Image on Logical Templates
NOTE: Refer to the VMware RA readme.txt file for customizing the Virtual Machines
authored in the templates
Pre-requisite to provision a Virtual Machine
There must be a Gold/Base VM in the Datacenter, this Gold/Base VM will be used as gold
image file to clone VM.
The Gold VM and the template must contain one NIC with DHCP configuration accessible
from the domain. This is required so that after the guest Customization, the VM receives a
proper IPAddress which is reachable from domain.
Two VMs with a VLAN

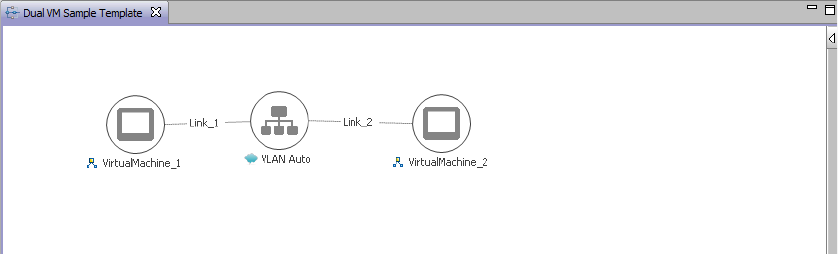

The Dual VM Sample template (Figure 14) can be used to create VM workloads by scheduling
a logical template over existing physical resources sessions, to consume the compute and
storage resources of specific physical components.
Two VMs Connected to a VLAN Figure 13.
When scheduled, this template performs the following sequence of operations:
• Clones and powers on two VMware VMs based on the Gold VM Image associated in
the template.
• Creates port-groups corresponding to VLAN component on vSwitch, as can also be
seen in the annotation in the template screenshot below.
