58

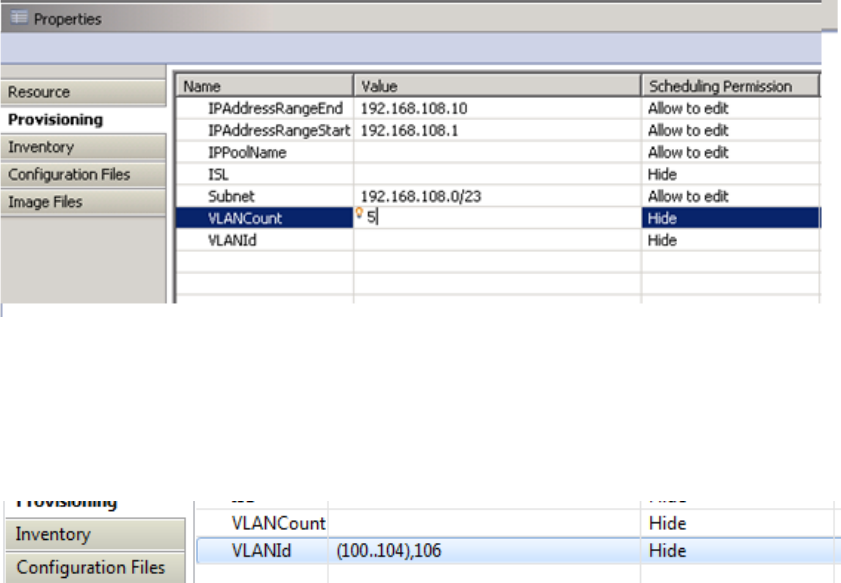

4. Select the VLAN Component, click the Inventory tab, and update the VLANCount
with the number of VLANs to be provisioned.
The VLAN defined in the VLAN component are the Workload VLAN’s, other VLAN’s
should be statically configured on the ToR switches.
5. Update the VLAN ID range, as applicable, and update the VLANId parameter.
6. Save the template
