57
• Allows access to specific cluster or standalone ESXi hosts, as applicable.
• Creates a VMFS datastore on a cluster or standalone ESXI hosts, as applicable.
Updating Physical Templates
To update cluster and standalone templates that require specific data before scheduling a
template for cluster provisioning, perform the following steps:

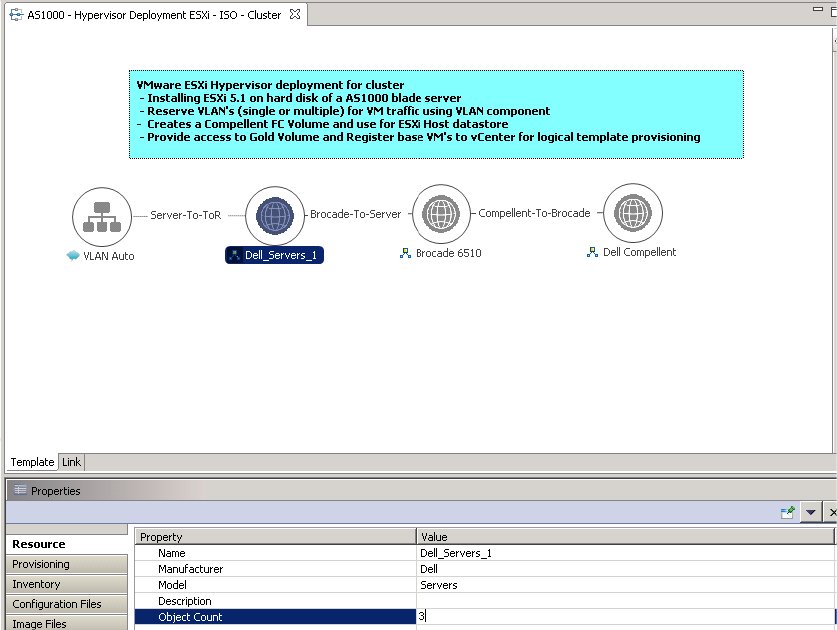

1. Update the template for a blade server. Updates the blade server count for cluster
provisioning.
2. Save the template by Ctrl+S or by selecting the save icon on the thick client after
making the changes.
3. Update the template for VLANs.
