56
c. Execute the On-Demand orchestration.
Alternatively, if you do not want to update the global parameter:
a. Disable (uncheck) the ClusterVolumeSize parameter under Global
Parameters Storage
b. Specify the custom size directly on the “Input Values” screen
c. Execute the orchestration

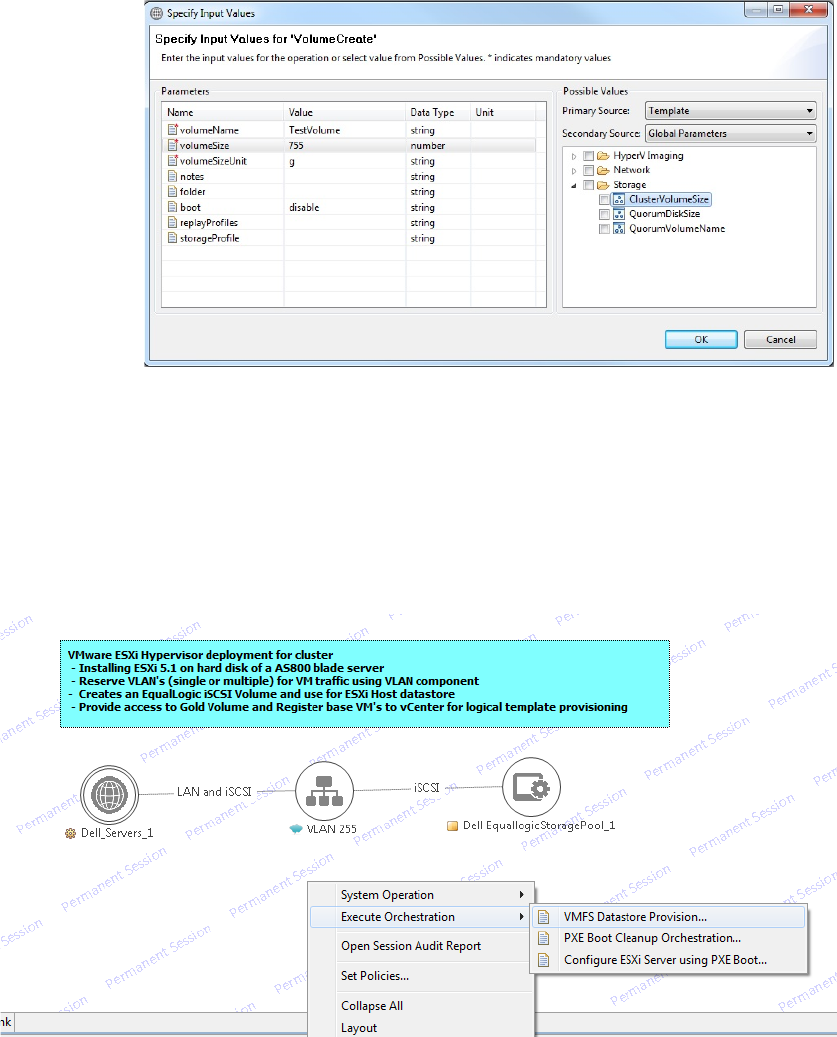

For executing on demand orchestration, open the session by double-clicking it. On the
session, right click and select the VMFS Datastore Provisioning orchestration for execution;
see Figure 12.
VMFS Datastore Provision Figure 12.
When executed, orchestration performs the following sequence of operations:
• Creates a new volume on Compellent.
