Navigate to Cluster → Edit Settings → vSphere HA dialog box and select the Enable:
Disallow VM power on operations that violate availability constraints check box
under Admission Control section.
Navigate to Cluster → Edit Settings → VM Monitoring dialog box and select the
Custom check box under Default Cluster Settings section.
Single Blade Server for Standalone ESX Host Provisioning
Template ‘AS1000 - Hypervisor Deployment ESXi – ISO – Standalone’ and can be used for
installing ESXi 5.1 on an SD card using ISO Boot. You can specify only one blade server for
standalone ESXi host provisioning per session using the standalone template. If you need to
provision multiple blade servers, you will need to either initiate multiple sessions using the
standalone template or deploy an ESXi cluster using the ESXi cluster template.

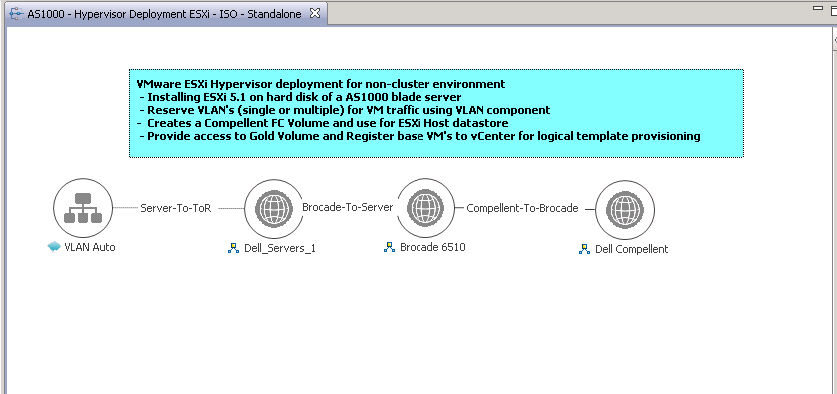

Single Blade Server for Standalone ESX Host Provisioning Figure 10.
While scheduling the template, user would be prompted to provide values for orchestration
parameters which are same as defined in Table 8 and Figure 9.
NOTE: Traffic shaping can limit the bandwidth usage of your VMs. To make sure that
VMware Traffic Shaping is disabled for Workload before scheduling the Physical
Orchestration for ESXi provisioning, complete the following procedure:
1. From vCenter, click on the ESXi host.
2. Click the Configuration tab.
3. Click on the Networking link.
4. Click on Properties of the vSwitch which contains the VM-Workgroup port group.
5. Click on the VM-Workgroup port group and click Edit.
6. Click the Traffic Shaping tab.
7. Select Disable in the drop-down menu.
