While scheduling the template, user would be prompted to provide values for the following
orchestration parameters:

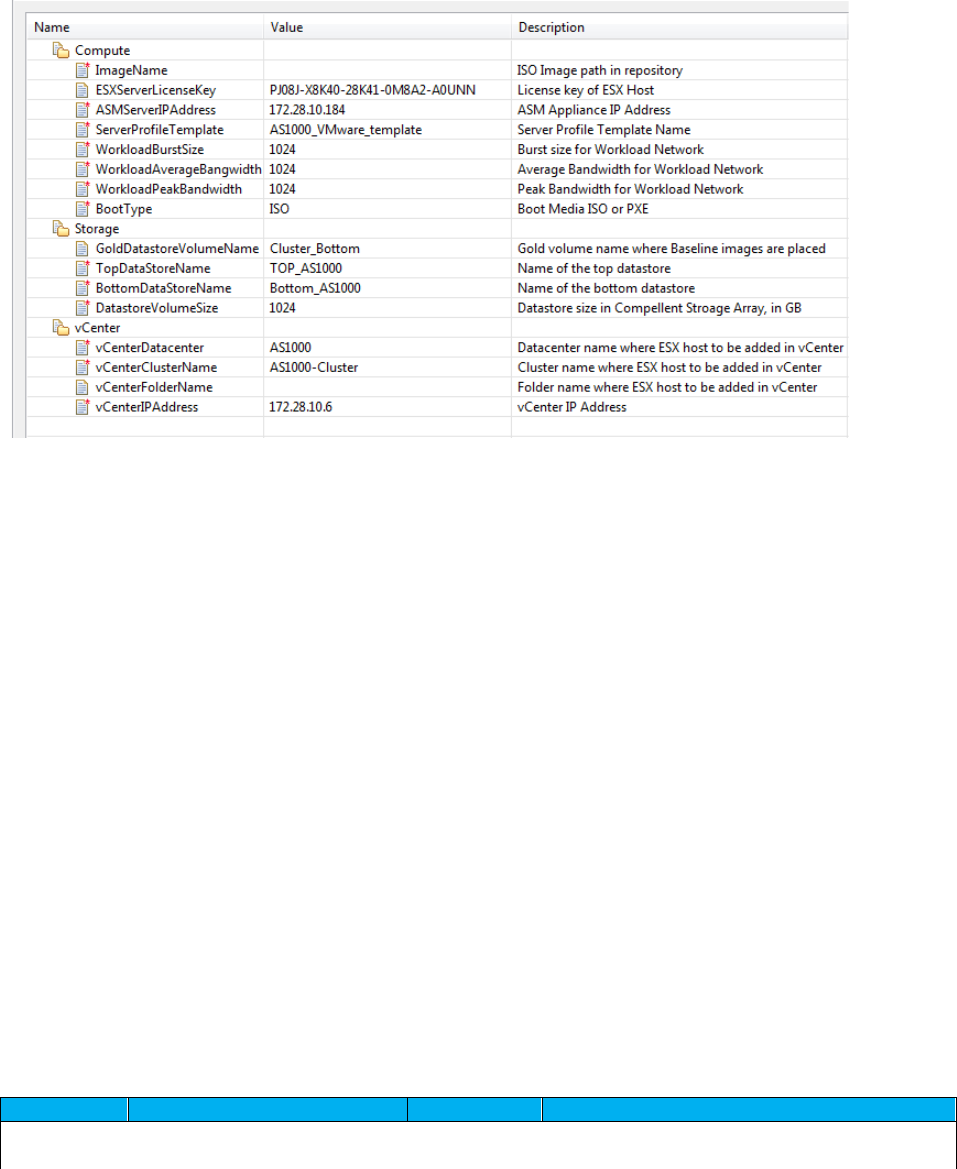

Global Orchestration parameters Figure 9.
The parameters such as ServerProfileTemplate with an icon associated with it are
mandatory, while other parameters such as ESXServerLicenseKey are optional. Below table
describes the global parameters that can be provided to orchestration.
NOTE: Traffic shaping can limit the bandwidth usage of your VMs. To make sure that
VMware Traffic Shaping is disabled for Workload before scheduling the Physical
Orchestration for ESXi provisioning, complete the following procedure:
1. From vCenter, click on the ESXi host.
2. Click the Configuration tab.
3. Click on the Networking link.
4. Click on Properties of the vSwitch which contains the VM-Workgroup port group.
5. Click on the VM-Workgroup port group and click Edit.
6. Click the Traffic Shaping tab.
7. Select Disable in the drop-down menu.
8. Deselect Status.
9. Click OK.
10. Click Close
Table 8. Orchestration Input Parameters
Category
Parameter Name
Input Type
Description
Compute
ServerProfileTemplate
Mandatory
Server Profile template which should be
used for hardware configuration for blade
