Physical Templates and Orchestration
This section describes the following topics related to physical templates and orchestration:
• Multiple Blade Server for Cluster Provisioning
• Single Blade Server for Standalone ESX Host Provisioning
• Associated Orchestrations with Cluster and Standalone Host Templates
• Additional Storage for Cluster or Host
• Updating Physical Templates
Multiple Blade Server for Cluster Provisioning
Template ‘AS1000 - Hypervisor Deployment ESXi - ISO – Cluster’ can be used for installing
ESXi 5.1 on an SD card using ISO Boot. You can specify one or more blade servers using this
template for creating a cluster.

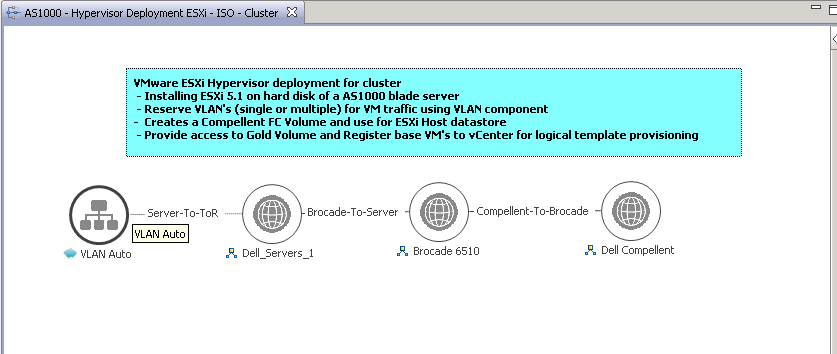

Multiple Blade Server for Cluster Provisioning Figure 8.
