40
images are located at /var/lib/tftpboot/images/Dell/Force10/<assetTag> then base
directory path value would be ‘/var/lib/tftpboot’.
6. Click Discover to initiate the discovery of the repository files.

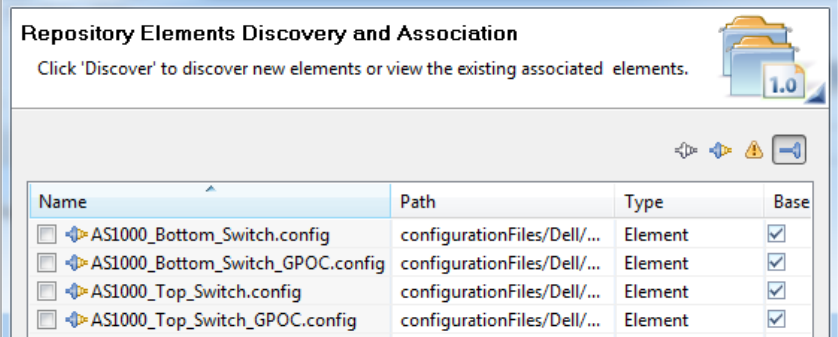

The list of discovered elements in the repository display:
NOTE: Before initiating ‘Discover’, please make sure Force10 switch configuration
files and images should be copied at required location for each switch.
For example if base directory path is /var/lib/tftpboot
• Configuration files should be copied at following location
/var/lib/tftpboot/configurationFiles/Dell/Force10/<assetTag>/config.txt
• Image files should be copied at following location
/var/lib/tftpboot/configurationFiles/Dell/Force10/FTOS-SE-8.3.12.1.bin
7. Right-click the selected discovered elements and update the Type to Configuration
File / image, and click Finish.
8. Click Associate to associate the selected element with the Dell Force10Switch
resource type/instance and click Finish.
Updating Repository Elements for VMware Baseline Images
This repository contains VMware baseline images for creating VM clones.
To update the repository elements for VMware baseline images, perform the following
steps:
1. Open the Software Repositories view in the setup perspective by clicking Setup ->
Software Repositories on the thick client
2. Right-click the view and select Repositories.
3. Click the Software Repository > Existing radio buttons.
