39
/var/lib/tftpboot/configurationFiles/Brocade/6510/<assetTag> then base directory
path value would be ‘/var/lib/tftpboot’.
6. Click Discover to initiate the discovery of the repository files.
The list of discovered elements in the repository display.
NOTE: Before initiating ‘Discover’, please make sure Brocade switch configuration
files should be copied at required location for each switch.
For example if base directory path is /var/lib/tftpboot then configuration files
should be copied at following location
/var/lib/tftpboot/configurationFiles/Brocade/6510/<assetTag>/config.txt
7. Click Associate to associate the selected element with the Brocade resource type
and click Finish.
Updating Repository Elements for ToR Switch Configurations and
Images
To update these repository elements, perform the following steps:
1. Open the Software Repositories view in the setup perspective by clicking Setup ->
Software Repositories on the thick client.
2. Right-click the view and select Repositories.

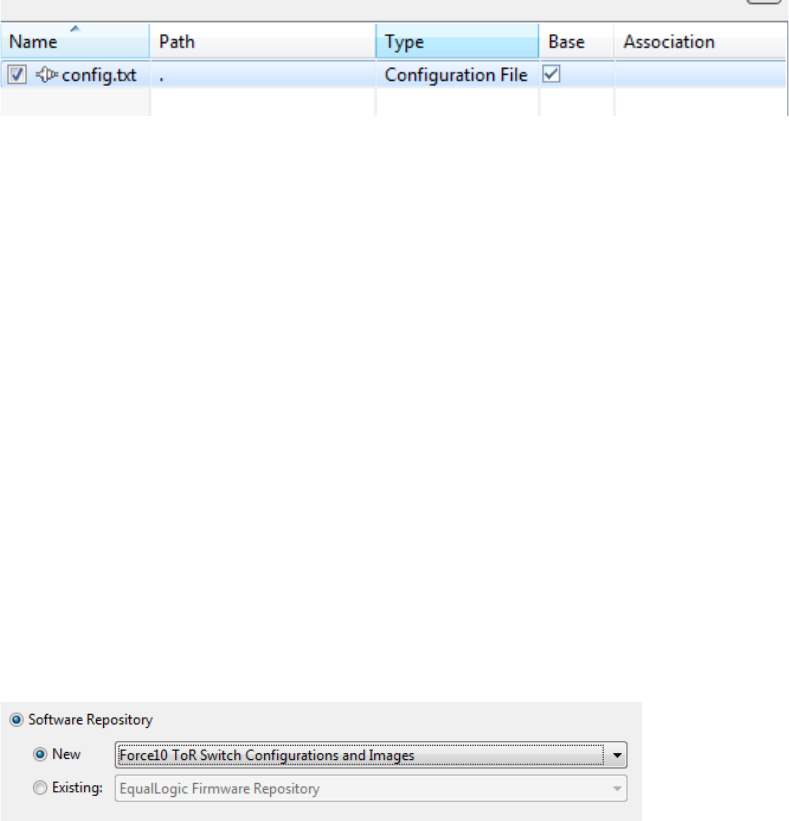

3. Click the Software Repository > Existing radio buttons.
4. Using the drop-down menu, select Force10 ToR Switch Configuration and Images
Repository and click Next.
5. Provide Name, Description and update the following Repositories Properties, and
click Next.
Host: Repository Server IP Address, can be ASM server IPAddress
Port: Repository Server Port, by default its value is 22
Username: Repository server username
Password: Repository server password
Base Directory: Repository server base directory path where Force10 switch
configuration files and images are copied. For example, if configuration files are
located at /var/lib/tftpboot/configurationFiles/Dell/Force10/<assetTag> and
