Password: Repository server password
Base Directory: Repository server base directory path where Brocade switch image
files are copied. If image files are located at
/var/lib/tftpboot/images/Brocade/6510 folder then base directory path value
would be ‘/var/lib/tftpboot’.
6. Click Discover to initiate the discovery of the repository files.

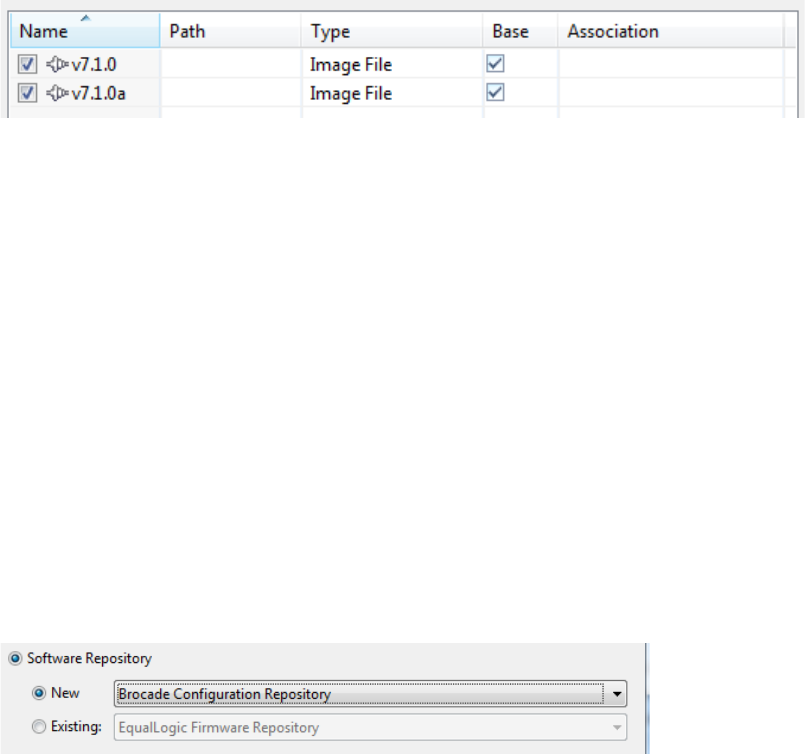

This will list the discovered element in the repository:
NOTE: Before initiating ‘Discover’, please make sure Brocade switch image files
should be copied at required location.
For example if base directory path is /var/lib/tftpboot then image files should be
copied at following location /var/lib/tftpboot/images/Brocade/6510/v7.1.0
7. Click Associate to associate the selected element with the Brocade 6510 resource
type and click Finish
Updating Repository Elements for Brocade Switch Configuration
To update these repository elements, perform the following steps:
1. Open the Software Repositories view in the setup perspective by clicking Setup ->
Software Repositories on the thick client.
2. Right-click the view and select Repositories.
3. Click the Software Repository > New radio buttons.
4. Using the drop-down menu, select Brocade Configuration Repository and click
Next.
5. Provide Name, Description and update the following Repositories Properties, and
click Next.
Host: Repository Server IP Address, can be ASM server IPAddress
Port: Repository Server Port, by default its value is 22
Username: Repository server username
Password: Repository server password
Base Directory: Repository server base directory path where Brocade switch
configuration files are copied. For example, if configuration files are located at
