37
Host: ASM server IPAddress
BaseDirPath: Image Base Directory file location exists at tftpboot location.
For example: Dell/IOM
TFTPROOTPATH: TFTP Root path location located in ASM server.
For example: /var/lib/tftpboot
SSH Username: ASM server SSH username
SSH Password: ASM server SSH password
6. Click Discover to initiate the discovery of the repository files.

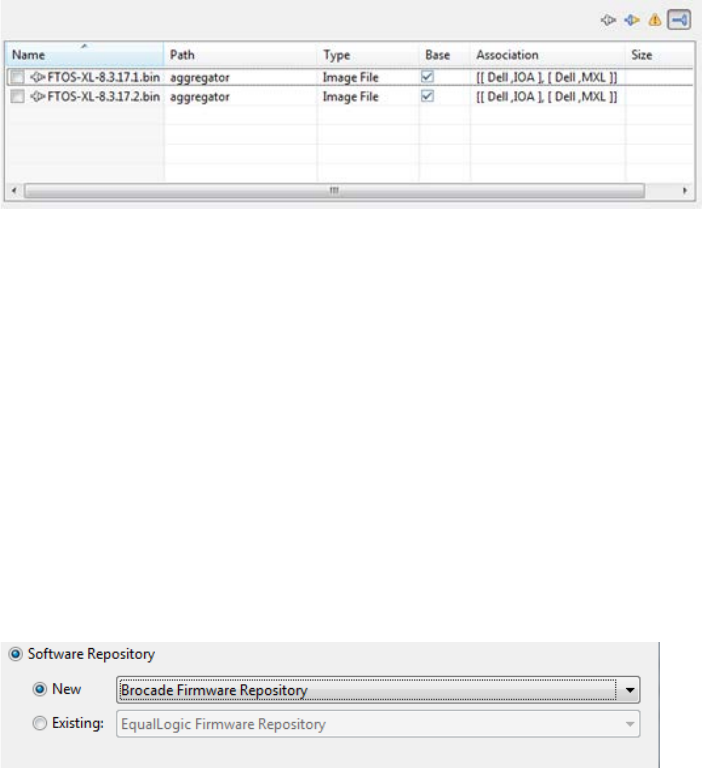

This will list the discovered element in the repository:
NOTE: Before initiating ‘Discover’, please make sure required image files should be
copied at following location /var/lib/tftpboot/Dell/IOM/FTOS-XL-8.3.17.1.bin
7. Click Associate to associate the selected element with the Dell IOA resource type
and click Finish.
Updating Repository Elements for Brocade Firmware Repository
To update these repository elements, perform the following steps:
1. Open the Software Repositories view in the setup perspective by clicking Setup ->
Software Repositories on the thick client.
2. Right-click the view and select Repositories.
3. Click the Software Repository > New radio buttons.
4. Using the drop-down menu, select Brocade Firmware Repository and click Next.
5. Provide Name, Description and update the following Repositories Properties, and
click Next.
Host : Repository Server IP Address, this can be ASM server IPAddress
Port: Repository Server Port, by default its value is 22
Username: Repository server username
