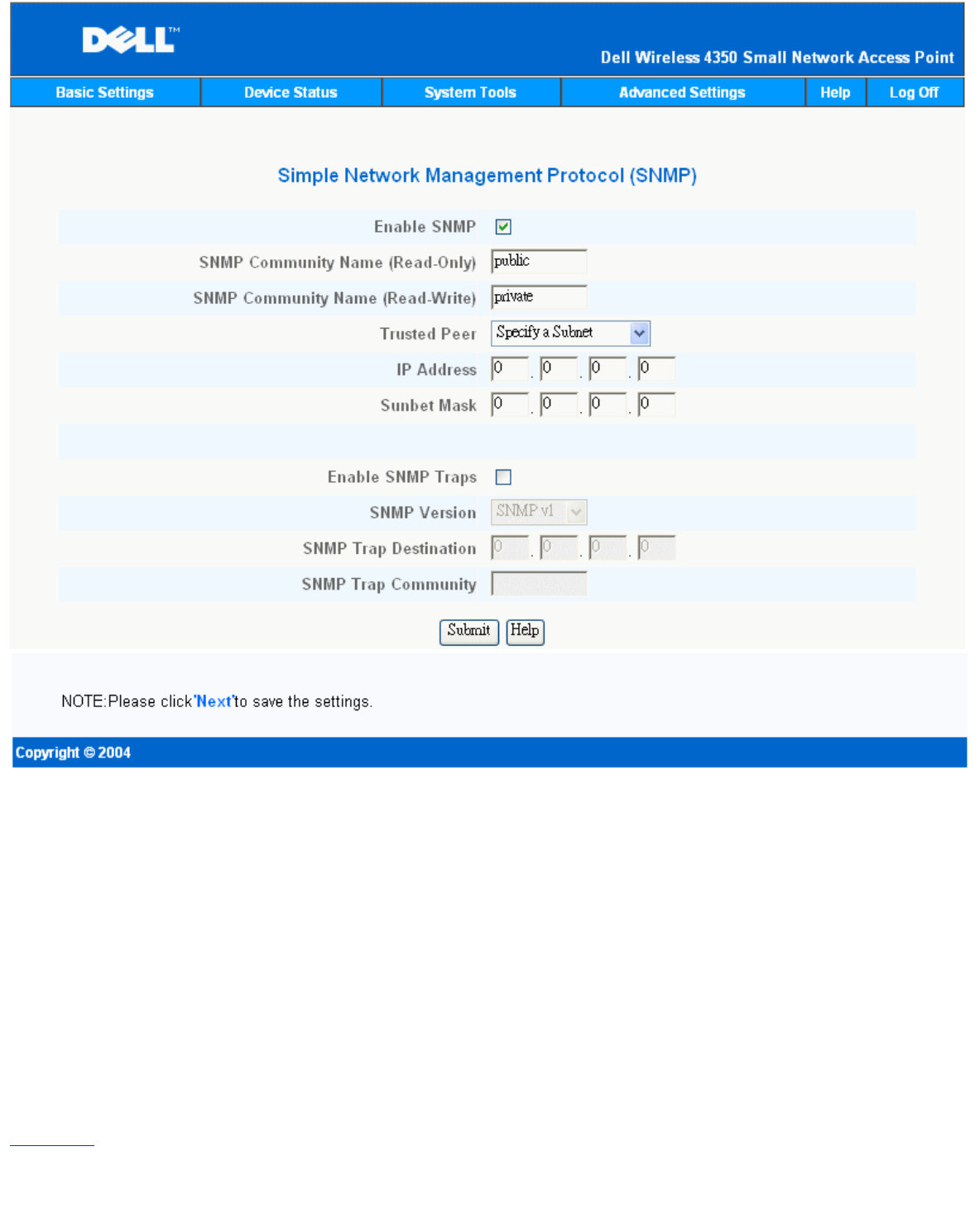

To enable SNMP protocol support:
1.
Click to select Enable SNMP.
2.
The SNMP Community Names are passwords used in SNMP messages between the access point and the SNMP
management system. A Read-Only community allows the management system to monitor the device, while a Read-Write
community can both monitor and configure the device. Enter the Get and Set community names in the appropriate fields.
3.
The Trusted Peer identifies which remote managements stations are allowed to perform SNMP operations on the device. The
options available for a trusted peer are (a) Any Address (b) Specify an IP Address & (c) Specify a Subnet. Select the
appropriate option and enter the IP Address and Subnet Mask into the appropriate fields.
To enable SNMP Trap support:
1.
SNMP Traps are messages sent by the access point to a SNMP management station in order to notify it about the occurrence
of important events or conditions on the device. To enable SNMP Traps, click Enable SNMP Traps.
2.
The access point supports SNMP version 1, version 2c and version 3 traps. Select the appropriate version for your management
station in the SNMP Version list.
3.
Enter the appropriate information on your management station into the SNMP Trap Destination and SNMP Trap Community
fields.
