Installation manual

Dispensing Models Service and Installation Manual
13
For customer service, call [phone], [phone], Fax [phone], www.delfield.com
Tools Needed: One small flat head screw driver;
One Phillips head screw driver
1. Always wear safety glasses when adjusting your dispenser.
Also, lock brakes on mobile units before beginning.
2. Unload dispenser.
3. Use screw driver to remove
two screws, one on each
side of the elevator housing.
4. Remove cover and slide
front panel off.
5. If carrier is riding too
high, you need to remove
springs. With carrier all
the way to the top, gently
disengage one spring at a
time, unhooking bottom
loop out of carrier bracket.
Remove as many springs
as necessary.
If carrier is riding too low,
you need to add springs.
With carrier all the way to
the top, gently engage one
spring at a time by hooking
bottom loop of spring into
carrier bracket. Add as
many springs as necessary.
6. Load unit to test dispensing level. If spring adjustment
does not position carrier properly, repeat step #5 trying
different springs. If this does not work, a different set of
springs may be required. To order, call The Delfield Parts
and Service Department.
7. If level is appropriate, replace front panel and cover.
Secure with screws.
Dispenser should not be operated with front panel
off elevator housing.

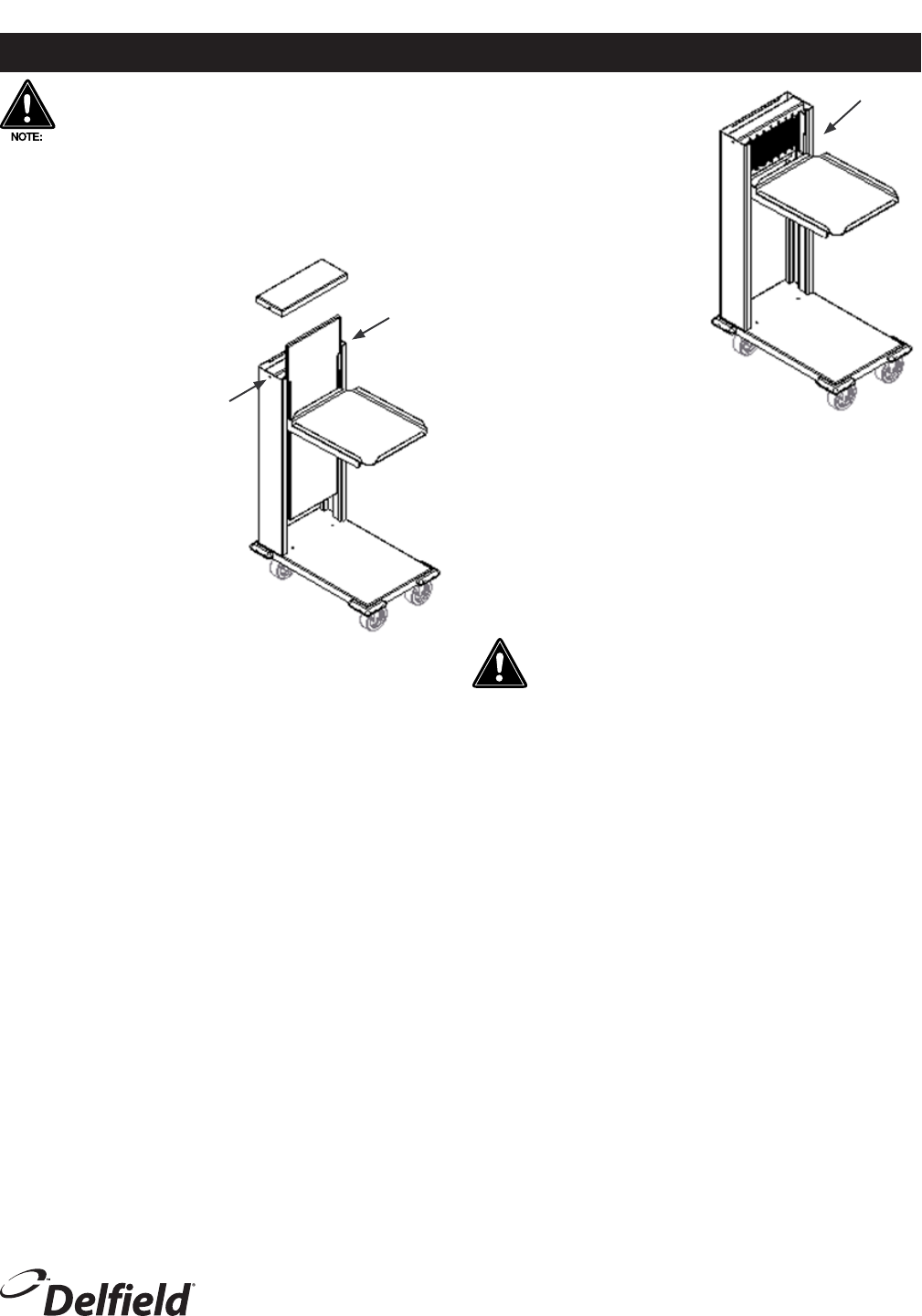

Adjusting Self-Leveling Dispensers, Model CT
CAUTION
