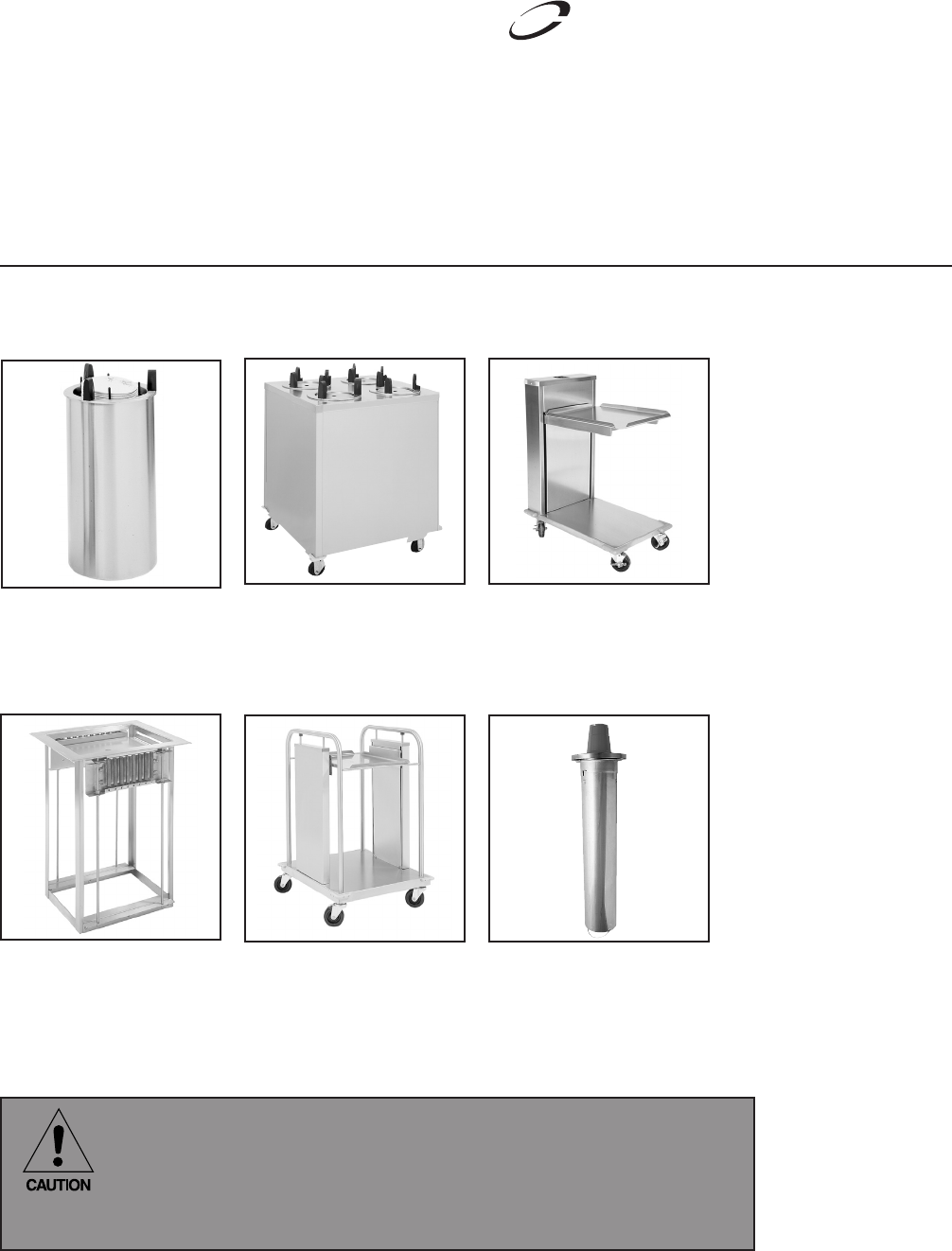

Shelleymatic® by Delfield Dispensing Models Service and Installation Manual Please read this manual completely before attempting to install or operate this equipment! Notify carrier of damage! Inspect all components immediately.
Dispensing Models Service and Installation Manual Important Warning And Safety Information WARNING Read This Manual Thoroughly Before Operating, Installing, Or Performing Maintenance On The Equipment. WARNING Failure To Follow Instructions In This Manual Can Cause Property Damage, Injury Or Death. WARNING Do Not Store Or Use Gasoline Or Other Flammable Vapors Or Liquids In The Vicinity Of This Or Any Other Appliance.
Dispensing Models Service and Installation Manual Contents Receiving & Inspecting Equipment............................................ 3 Serial Number Location.............................................................. 4 Warranty Information.................................................................. 4 Regulatory Certifications............................................................. 4 Specifications...........................................................................5-8 Installation ..
Dispensing Models Service and Installation Manual Serial Number Location Dish Dispensers: The serial number is located on the dispenser housing. Tray & Rack Dispensers: The serial number is located on the back of the unit or the underside of the flange. Always have the serial number of your unit available when calling for parts or service. ©2013 The Delfield Company. All rights reserved. Reproduction without written permission is prohibited.
Dispensing Models Service and Installation Manual Specifications Dish Dispensers — Mobile Two Stack CAB3-575ET 5.75” 208 10.6 6-20P CAB3-650ET 6.50” 208 10.6 6-20P CAB3-725ET 7.25” 208 10.6 6-20P CAB3-813ET 8.12” 208 10.6 6-20P CAB3-913ET 9.12” 208 10.6 6-20P CAB3-1013ET 10.12” 208 10.6 6-20P CAB3-1200ET 12.00” 208 10.6 6-20P CAB3-1450ET 14.50” 208 10.6 6-20P CAB3-813QT 8.12” 208 10.6 6-20P CAB3-913QT 9.12” 208 10.6 6-20P CAB3-1013QT 10.12” 208 10.
Dispensing Models Service and Installation Manual Specifications Dish Dispensers — Drop-In Flange Diameter Cutout Diameter Dish Diameter Voltage (60Hz, 1Ph) Amps Nema Plug DIS-500 8.37” 7.75” 5.00” N/A N/A N/A DIS-575 9.12” 8.50” 5.75” N/A N/A N/A Model DIS-650 9.87” 9.25” 6.50” N/A N/A N/A DIS-725 10.62” 10.00” 7.25” N/A N/A N/A DIS-813 11.50” 10.87” 8.12” N/A N/A N/A DIS-913 12.50” 11.87” 9.12” N/A N/A N/A DIS-1013 13.50” 12.87” 10.
Dispensing Models Service and Installation Manual Specifications, continued Mobile Cantilevered Tray and Rack Dispensers Model Maximum Tray Size Ship Weight Model Maximum Tray Size Ship Weight CT-1216 12” x 16” 106lbs/48kg CT-1622 16” x 22” 159lbs/72kg CT-1221 12” x 21” 132lbs/60kg CT-1826 18” x 26” 165lbs/75kg CT-2020 20” x 21” 168lbs/76kg CT-1418 14” x 18” 145lbs/66kg CT-1422 14” x 22” 145lbs/66kg Napkin Dispensers Model Cutout Dimension Napkin Dimension Ship Weight ND-45
Dispensing Models Service and Installation Manual Specifications, continued Two Stack, Heated Mobile Enclosed Tray And Rack Dispensers T2-1221H 12.00” X 21.00” 12.
Dispensing Models Service and Installation Manual Installation: Dish Dispensers Electrical Connection Location Dish dispensers are intended for indoor use only. Drop-in units require a counter cutout of a specific size for proper fit. Refer to specification data for the proper dimensions. Heated units must have minimum 1” (2.5cm) air gap between the bottom of the dispensing tube and any surface or objects below.
Dispensing Models Service and Installation Manual Operation Dish Dispensers Field adjustment The dispensing height may be adjusted, by following these instructions in order: Always wear safety glasses when adjusting your dispenser. Springs under tension may recoil when released. W E AR If adjusting a heated model, unplug the unit. Allow the unit to cool completely before handling. DA NG ER 1) Lock brakes on mobile units before beginning. 2) Unload the dispenser.
Dispensing Models Service and Installation Manual Operation: Dish Dispensers, continued The thermostat is located on the bottom of the unit near the fan motor. Use the following directions to adjust. Unplug the unit and allow the unit to cool completely before handling. DA NG ER 1) Lock brakes on mobile units before beginning. 2) Unload the dispenser. Remove dispensers from the unit by grasping the black plastic guide posts and lifting the dispenser completely out of the unit.
Dispensing Models Service and Installation Manual Adjusting Self-Leveling Dispensers, Models FT2, TT & LT Tools Needed: One small flat head screw driver; One Phillips head screw driver 1. Always wear safety glasses when adjusting your dispenser. Also, lock brakes on mobile units before beginning. 2. Unload dispenser and remove stainless steel load tray by lifting straight up and set it aside (see fig. 1). For Models LT skip to step #6. (figure 1) Sample unit 3.
Dispensing Models Service and Installation Manual Adjusting Self-Leveling Dispensers, Model CT Tools Needed: One small flat head screw driver; One Phillips head screw driver 1. Always wear safety glasses when adjusting your dispenser. Also, lock brakes on mobile units before beginning. 2. Unload dispenser. 3. Use screw driver to remove two screws, one on each side of the elevator housing. 4. Remove cover and slide front panel off. 5. If carrier is riding too high, you need to remove springs.
Dispensing Models Service and Installation Manual Maintenance Dish Dispensers DA NG ER DA NG ER Heated units must be disconnected from the main power source and allowed to cool down before cleaning. Cords on DIS models used as drop-ins into a counter or into another piece of equipment are directly connected to the power source. On CAB units there is a cord from each individual DIS tube to a central receptacle on the cart and a separate cord from that receptacle to the main power source.
Dispensing Models Service and Installation Manual Troubleshooting Reference Chart: Heated Dish Dispensers Problem Possible Cause Power cord disconnected No Heat Solutions GFCI tripped Check power source to unit and receptacle at the underside of the cabinet.
Dispensing Models Service and Installation Manual Wiring Diagram: DIS Models & T-H Models DIS Models Cord & Plug Motor On/off Switch DIS Models Cord & Plug Heater Thermostat Limit Motor On/off Switch Thermostat CAB Models Limit CABHeater Models Contain Several DIS Units Wired Together DIS DIS Wiring Diagram: CAB Models DIS CAB Models 16 CAB Models Contain DIS Several DIS Units Wired Together DIS DIS DIS DIS For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210
Dispensing Models Service and Installation Manual Replacement Parts List Models DIS Model DIS-ET, DIS-QT All units All units 6230314 Filter, air, 6” diameter (DDS) 6190085 813/ 913/ 1013/ 1200/ 1450 ET & QT units Cord with plug, NEMA 5-15P 5’ 6160007 Fan blade, 4” dia, ET &QT models Htg element, 120V/700W, ET &QT 6230244 Guide post 6230314 Filter, air, 6” diameter 6190269 6150201 Spring, heavy tension 6230244 Guide post 000-BHM-0031 Heating module, ET & QT models 6150203 Spring, light
Dispensing Models Service and Installation Manual Replacement Parts List, continued Model CT Series Model FT2-SN All units 6230068 Bearing 6320007 Bearing All Models 6230170 Bumper, corner, small 6230218 Caster, 4” 6320007 Bearing, 0.50”ID 3234180 Caster, 4” 6230170 Corner bumper 6160007 Blade, Fan 4”Dia, Alum 000-546-0038 Elevator assembly, large 3234180 Caster, 4”, Plate, Swivel, Break 6150203 Extension spring .
Dispensing Models Service and Installation Manual Standard Labor Guidelines To Repair Or Replace Parts On Delfield Equipment Advice and recommendations given by Delfield Service Technicians do not constitute or guarantee any special coverage. • A maximum of 1-hour is allowed to diagnose a defective component. • A maximum of 1-hour is allowed for retrieval of parts not in stock. • A maximum travel distance of 100 miles round trip and 2-hours will be reimbursed.
Delfield ™ Mt. Pleasant, MI ® Covington, TN Thank you for choosing Delfield! Help is a phone call away. Help our team of professional, courteous customer service reps by having your model number and serial number available at the time of your call (800) 733-8829. Model:________________________ S/N: _______________________ Installation Date:________________ For a list of Delfield’s authorized parts depots, visit our website at www.delfield.com Register your Delfield warranty online. Go to www.
