Instructions / Assembly

Tape Measure
Adjustable Wrench
Pipe Clamp
Channel Locks Drill
Hacksaw
Level
Phillips
Screwdriver
Pipe Wrench
Plumber’s Putty or
Caulking
Putty Knife
Flathead
Screwdriver
Scroll Saw
Pipe Cutter
Pencil
Square Ruler
RECOMMENDED TOOLS

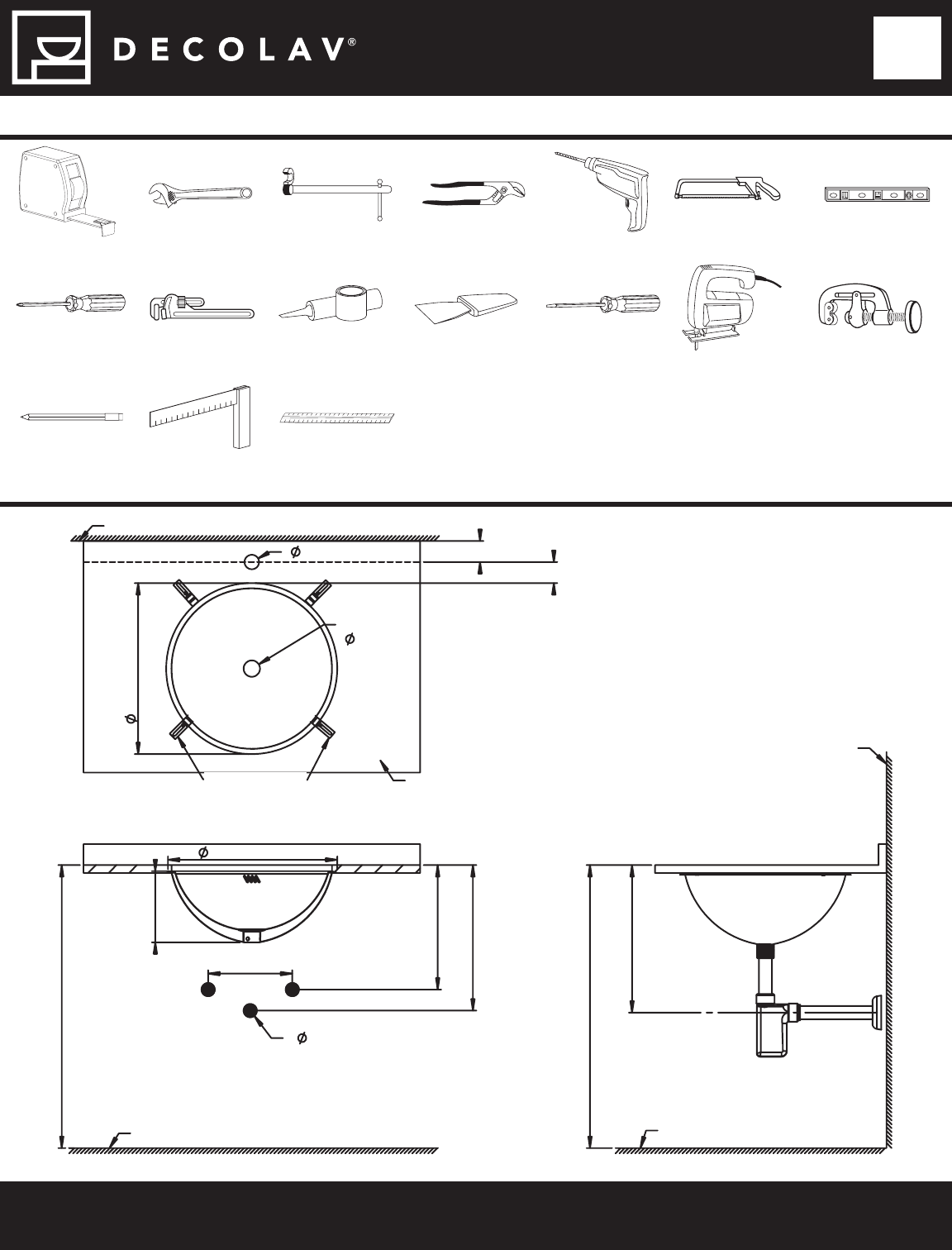

ROUGHING-IN DIMENSIONS
MODEL NUMBER: 1220 SERIES
2
MODEL NUMBER: 1220 SERIES
3
Customer Service: 561-274-2110
www.decolav.com
LET YOUR DREAMS COME ALIVE, YOUR PASSIONS
BECOME REALITY, BE THE ENVY OF YOUR NEIGHBORS
®
1 3/4"
[4.445 cm]
1 1/4" [3.175 cm]
8" [20.32 cm]
12" [30.48 cm]
14" [35.56 cm]
14" [35.56 cm]
6 3/4" [17.145 cm]
2" [5.08 cm]1 3/8" [3.4925 cm]
16 1/4" [41.275 cm]
16 1/4" [41.275 cm]
34" [86.365 cm]
34" [86.365 cm]
2 1/2" [6.35 cm]
Finished Wall
Drain
Hole
Countertop
Waste
Front View
Finished Floor
Top View
Fitting Line
Side View
Undermount Clips
Finished Wall
Finished Floor
Sugg.
Sugg.
Faucet Hole
