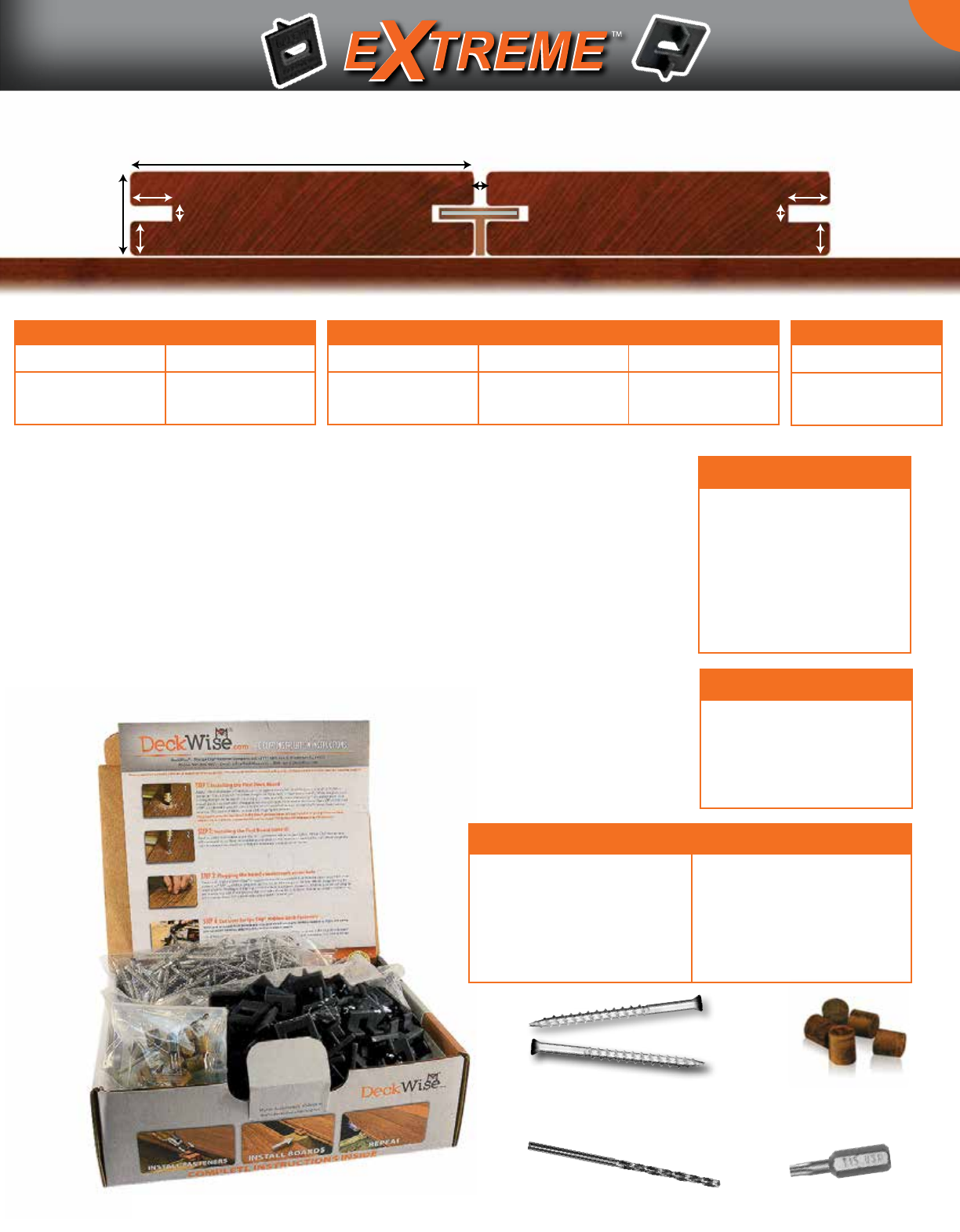

Specification

B
E
A C
F
D
E
C
D
Coverage varies, see coverage page in this manual.
* If using 1-1/2" or thicker material, you may need to upgrade to a longer screw option
than what is typically packaged with the fastening kit.
** For decking 8" or wider, the (A) dimension should be at least 1-1/2". Using a wide plank
such as this for surface decking will most likely cause cupping issues regardless of how the
material is fastened if thicker material is not used.
*** is formula will create a symmetrical prole that allows you to ip and/or rotate the
decking to be able to put the best side up.
**** Fastener automatically achieves correct gap spacing when boards are pushed tight
during installation.
Groove Dimensions
ickness of Cut Cutting Height Cutting Depth
C = 5/32"(4mm) D*** = (A-5/32")/2 E = 1/2"(13mm)
Board Dimensions
Board ickness Board Width
A* = Measurement Of
Your Decking
B** = Measurement Of
Your Decking
Board Spacing
During Installation
F**** = 3/32" (2,38mm)
DeckWise® Extreme™ Installation Specications
Complete Kit Contains
(175) IPE CLIP® Extreme™
Hidden Deck Fasteners
(190) #8x2" Colormatch Black
Stainless Steel Star Drive Screws
(12) 3/8" Tapered Ipe Plugs
(1) 1/8" High Speed Drill Bit
(1) T15 Star Drive Tip
(1) Instruction Sheet
100 Ct. Kit Contains
(100) IPE CLIP® Extreme™
Hidden Deck Fasteners
(100) #8x2" Colormatch Black
Stainless Steel Star Drive Screws
(1) Instruction Sheet
1/8" High Speed Drill Bit T15 Star Driver Bit
3/8" Tapered Ipe Plugs#8x2" Colormatch Black
Stainless Steel Star Drive Screws
2 Gal. Contractor Bucket 5 Gal. Contractor Bucket
(525) Hidden Deck Fasteners
(565) Stainless Steel Deck Screws
(3) T15 Star Drive Tips
(3) 1/8" High Speed Drill Bits
(1) Instruction Sheet
(1050) Hidden Deck Fasteners
(1130) Stainless Steel Deck Screws
(5) T15 Star Drive Tips
(5) 1/8" High Speed Drill Bits
(1) Instruction Sheet
These products are protected under one or more of the following patents; D485,160; 8,464,488; Other Patents Pending, and/or D470,039 product is licensed under U.S. Patent No. 6,402,415
This illustrates how the composite decking moves on its length.
