THE HARDWARE – CONTROLS AND CONNECTORS
Front Panel
Men uPower
HYBD
SACD
PWR
CD
RPT
RPT1
A-B
1394
CONT
PROG
RAND
WCLK
Super Audio CD Transport
dCS Verdi
Select
DISC
ART
TEXT
TRK
Step
CD
Update
L
A B C D E F G H I J K
M

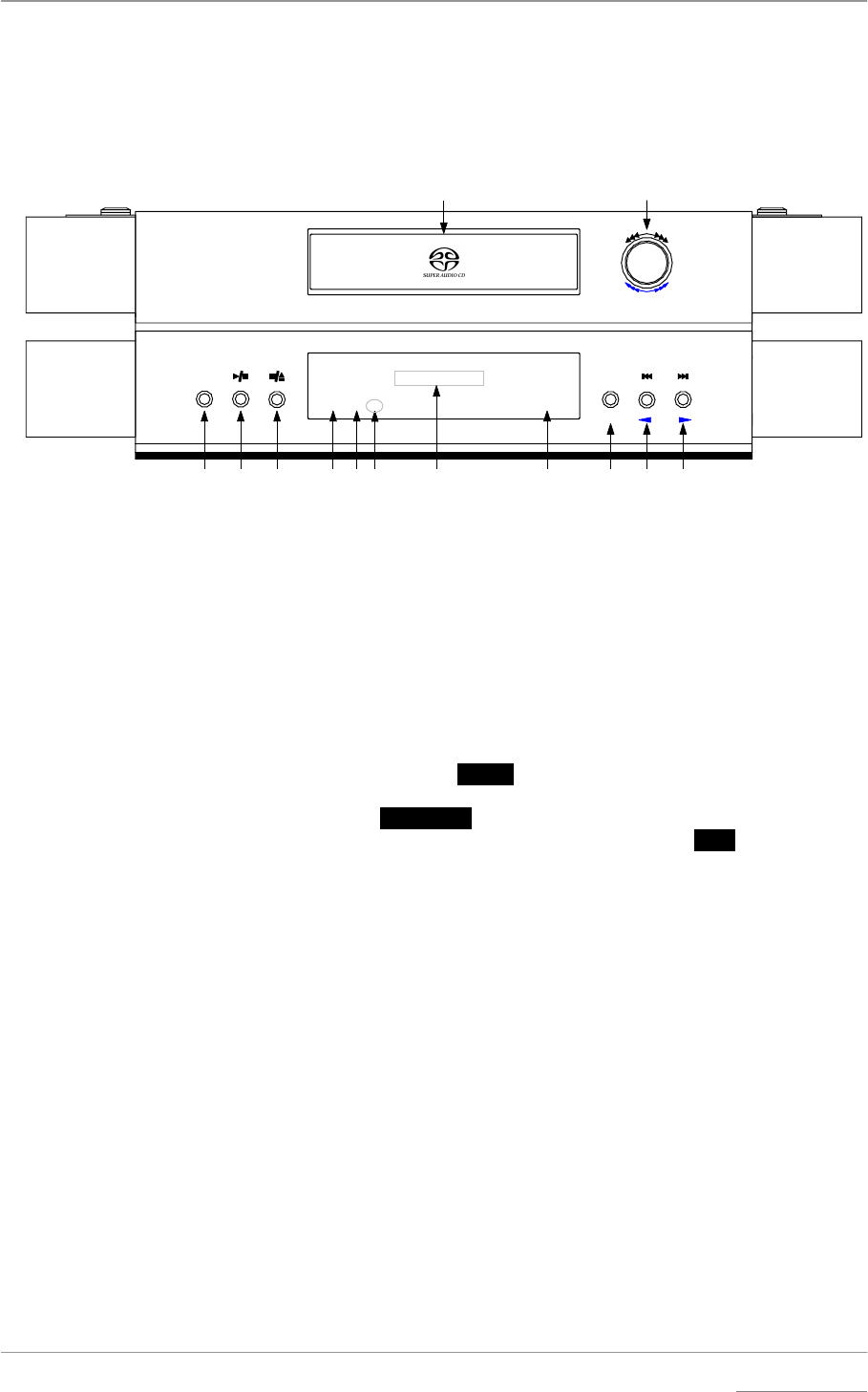

Figure 6 – dCS Verdi Front Panel
Key to Front Panel
A Power / Standby button
B Play / Pause button
C Stop / Eject button
D Status indicator
E Display mode indicator
F Remote Control sensor
G Main Display
H Mode indicator
I Menu or
Select button
J Previous Track / Fast Reverse or Menu
Step Back button
K Next Track / Fast Forward or Menu
Step button
L SACD/CD tray
M Rotary control
Power Button x
This button doubles as a power on / off switch and a standby mode switch.
do this: To switch on, press the Power button briefly. If power is available, the PWR
indicator will light and Verdi will run through the power up routine.
Note that the Power button will not click when turning power on – this is normal.
do this: When you have finished listening, press the Power button briefly to set the unit
to standby mode.
The outputs will mute, all displays will turn off except the PWR indicator. In this
mode, Verdi uses little power. If power is switched off or fails, Standby mode is
cancelled.
do this: To restore normal operation, press the Power button briefly again.
Verdi will power up ready for use.
do this: To switch off completely, press the Power button and hold it for a few seconds
until the Main Display shows Power Dn, then release it.
