Quick Set-Up Guide – dCS Verdi with dCS Delius
Quick Setup - Verdi-Delius12.doc October 2002
This sheet guides you through setting up Verdi and Delius to play CDs and
SACDs. This applies from software issues: Verdi v1.2x and Delius v2.2x fitted
with the 1394 option.
Basic Set-Up

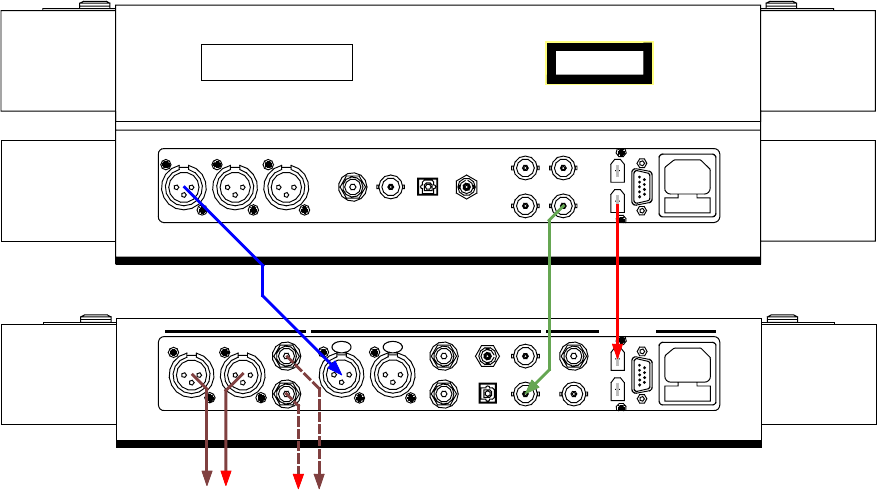

do this: Connect power cables to all units, press the Power buttons and wait for about
30 seconds. Connect up as shown.
The first time you use this set-up, run these reset routines:
do this: For Verdi, press the Menu button on the front panel, then press the ←
←←
← Step
button repeatedly until the display shows Factory – press the Menu button.
Wait 30 seconds for the unit to settle down.
do this: For Delius, press the Function button on the front panel, then press the ←
←←
← Step
button repeatedly until the display shows Factory – press the Function
button. Wait 60 seconds for the unit to settle down.
dCS Delius DAC
IN - WORDCLOCK - OUT
CH1
RCA TOSLINK
AES 1
BNC ST
1
SUC
1394
SDIF
AES 2 AES 3
CH2
CAUTION: VISIBLE AND INVISIBLE
LASER RADIATION. WHEN OPEN,
DO NOT STARE INTO BEAM.
CLASS 1
LASER PRODUCT
dCS Verdi SACD Transport
XLR
cables
RCA phono
cables
ANALOGUE OUTPUTS DIGITAL INPUTS POWER
IN - WORDCLOCK - OUT
BNC
RCA1
TOSL INK
AES1 AES2
PUSH
LR
L
R
RCA2
ST
PUSH
DIGITAL OUT
REC
1
SUC
1394
1394
cable
BNC
cable
LR
RL
Balanced
Outputs
To Power Amplifier or Preamplifier
Unbalanced
Outputs
- or -
XLR
cable
do this: Once the set-up is complete, load a disc, press the Play button and adjust
Delius’ Volume control.
The system will automatically select the CD data if you are playing a CD (Delius
displays 16/44.1) or the SACD data if you are playing an SACD / hybrid disc
(Delius displays Verdi).
That is all you need to do, except - enjoy the music!
