CLASSIFICAZIONE EMI
In accordo alle normative EN 55103, l'apparato è progettato e idoneo all'utilizzo in ambienti
Elettromagnetici E3 o inferiori (E2, E1).
DATI TECNICI
Sistema Attivo 3-Amps
Tipologia amplificatore Digitale - Classe D
Tecnologia DIGIPRO G2
Potenza RMS 1410W
Alti (HF) RMS 350W
Medi (MF) RMS 350W
Bassi (LF) RMS 710W
Potenza musicale 2820W
Risposta in frequenza (-6dB) 60-19.000Hz
Crossover MF-HF (Medi-Alti) 1900Hz
24dB/Oct
Crossover LF-MF (Bassi -Medi) 420Hz
24dB/Oct
Pressione sonora (SPL) 136dB max
Componenti 1 woofer 12" - VC 3" - Neodimio
2 midrange 6,5" - VC 2" - Neodimio
3 compression driver 1" - VC 1.5" - Neodimio
Sensibilità ingresso nominale 0dBu
Impedenza ingresso
Bilanciato 20Kohm
Sbilanciato 10Kohm
Alimentazione Full-range con PFC e SMPS
100-240V~ 50-60Hz
Corrente di accensione 14,9A
Dimensioni (LxHxP) 580x386x430mm
Peso 29,9Kg
PROCESSORE DSP
DSP Analog Device 56 bits
Conversione audio 24 bit / 96kHz S/N=116dB
Controllo volume Digitale
Equalizzazione 9 preset EQU
MECCANICA
Materiale box Polipropilene (PP)
Rinforzi interni box Alluminio
Materiale staffe appendibilità Acciaio
Angolazioni staffe 0° - 1,5° - 3° - 4,5° - 6° - 8° - 10°
Forma del diffusore Trapeziodale - angolazione 10°
Maniglia 1 x lato
Rete frontale Lamiera forata 1.2mm con foam interno.
ItalianoItalianoItaliano
Manuale d’usoManuale d’uso
7
DESCRIPTION
The DVA T12 is equipped with three class D amplifiers of DIGIPRO® G2 series, high efficiency,
which delivers high output power in a compact size and low weight. Thanks to its high
efficiency the cooling of the amplifier module is obtained statically, thus avoiding the use of a
fan.
®
The power supply circuits of the DIGIPRO G2 amplifier has been conceived to work in full-
range mode; thanks to the SMPS (Switched-Mode Power Supplies) technology with PFC
(Power Factor Correction) the operation with supply voltages between 100 Vac and 240Vac is
guaranteed by ensuring the same sound performances even with floating and non-stabilized
power supply systems.
The amplifier module is able to deliver 710W (RMS) for the bass section, 350W (RMS) for the
mid-section and 350W (RMS) for the treble section.

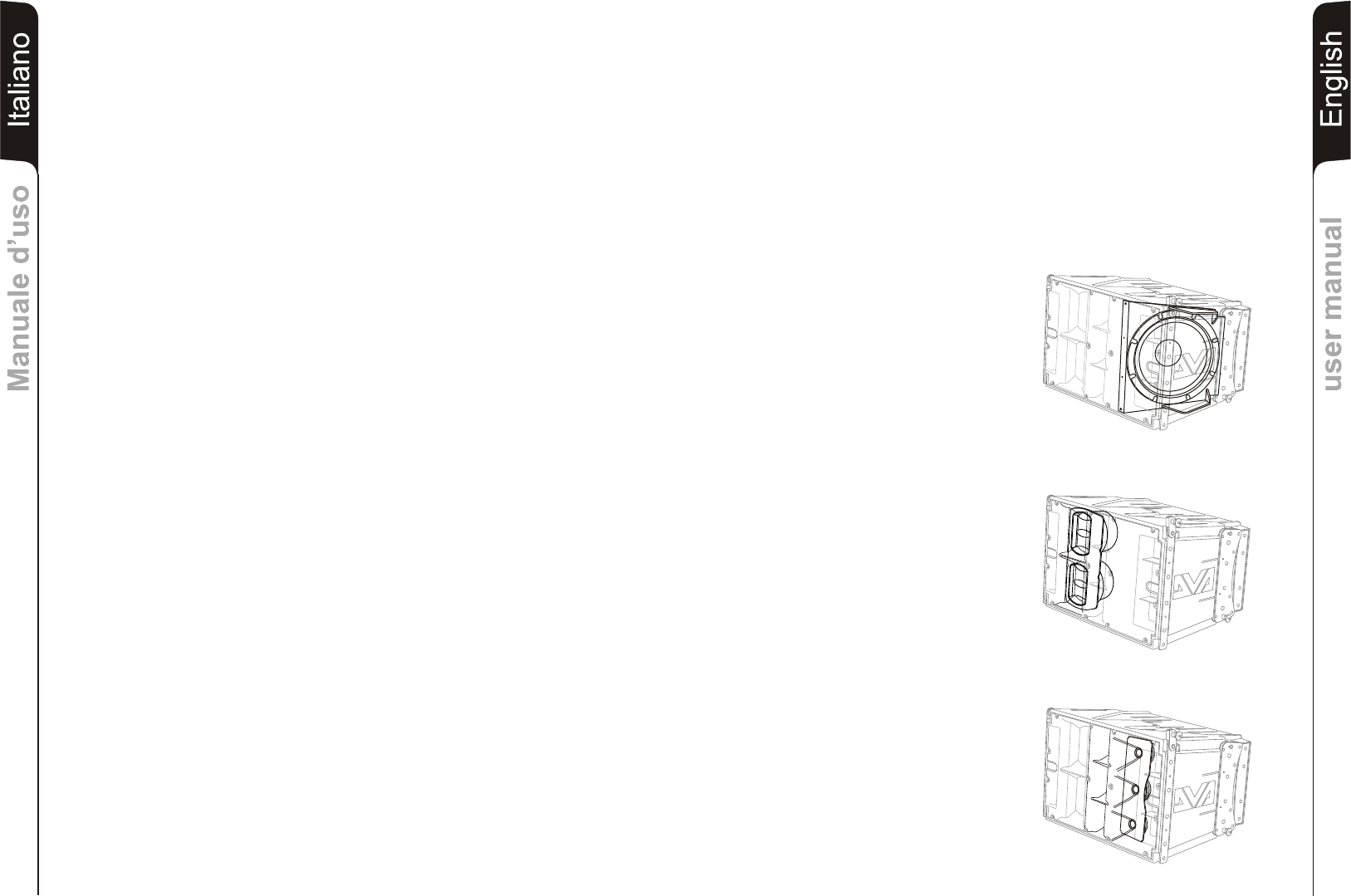

The bass section controls a 12" neodymium
woofer (3" voice coil) in a band-pass
configuration enclosed inclined inside the
box. This configuration guarantees a high
SPL and the obtainment of frequencies of up
to 60Hz.
The mid-section controls two 6.5"
neodymium midranges (2" voice coil),
enclosed in their own acoustic chamber and
horn loaded with a power factor corrector.
The plug phases located in front of the cones
prevent the vertical phases from overlapping,
creating in fact a local array with 6 output slot
that increases directivity. The horn design
was specifically created to couple it correctly
with the DVA T4 modules.
The treble section controls three 1"
neodymium drivers (1.5" voice coil)
positioned vertically on an aluminum support
and spaced to optimize the vertical cover.
The horn design was specifically created to
couple it correctly with the DVA T4 modules.
