DVA S09dp configuration
The DRK 10 flybar attests that the maximum number of DVA S09dp is 6.
Refer to table 3 to determine the total weight borne by flybar according to the different
DVA S09dp configurations.
Quantity Weight
[kg] [lbs.]
1 37 82
2 74 163
3 111 245
Table 3 4 148 326
5 185 407
6 222 444
Structural modification of DRK 10 flybar
Original parts dB Technologies
Note
Initiation and Operation
No structural modifications may be made without the manufacturer's consent.
Use only dB Technologies original parts
Use only dB Technologies .original parts
The TÜV authorizing body has not certificated any other parts for use!
Always install parts in accordance with these installation instruction!
Compile and store all DVA system documents in a safe place!
Warning
If the security norms and total weight calculations are not observed, dB Technologies
is not responsible for any possible damage to people and things.
During installation ensure that carrying structure of the system has added in the total
weight also the DRK 10 flybar weight, chain hoists, motors, cables and further weights.
§ 39, VBG 9a of the German employers' liability insurance association's accident
prevention regulations requires that load-carrying equipment be inspected by a qualified
expert and possible defects be eliminated prior to initial commissioning by the recipient.
§ 41 VBG 9a requires that load-carrying equipment be subjected to a non-routine
inspection following damage, repair work and other incidents that can affect load-carrying
capacity.
Warning
The safety regulations might be different in other countries. Please check with your
national safety authority the valid regulations!
33
EnglishEnglishEnglish
user manualuser manual
EnglishEnglishEnglish
user manualuser manual
34
DVA T4
DVA T12
DVA T4
DVA S10dp
DVA T4
DVA S09dp
!!
!!
Quantity Weight
DVA S10dp [kg] [lbs]
(Neodymium woofer)
1 48 106
2 96 212
3 144 317
4 192 423
5 240 528
Quantità Weight
DVA S10dp [kg] [lbs]
(Ceramic woofer)
1 54 119
2 108 238
3 162 357
4 216 476
DVA S10dp configuration
The DRK 10 flybar attests that the maximum number of DVA S10dp with Neodymium woofer is
4 and DVA S10dp with Ceramic woofer is 5.
Refer to table 2 to determine the total weight borne by flybar according to the different DVA
S10dp configurations.

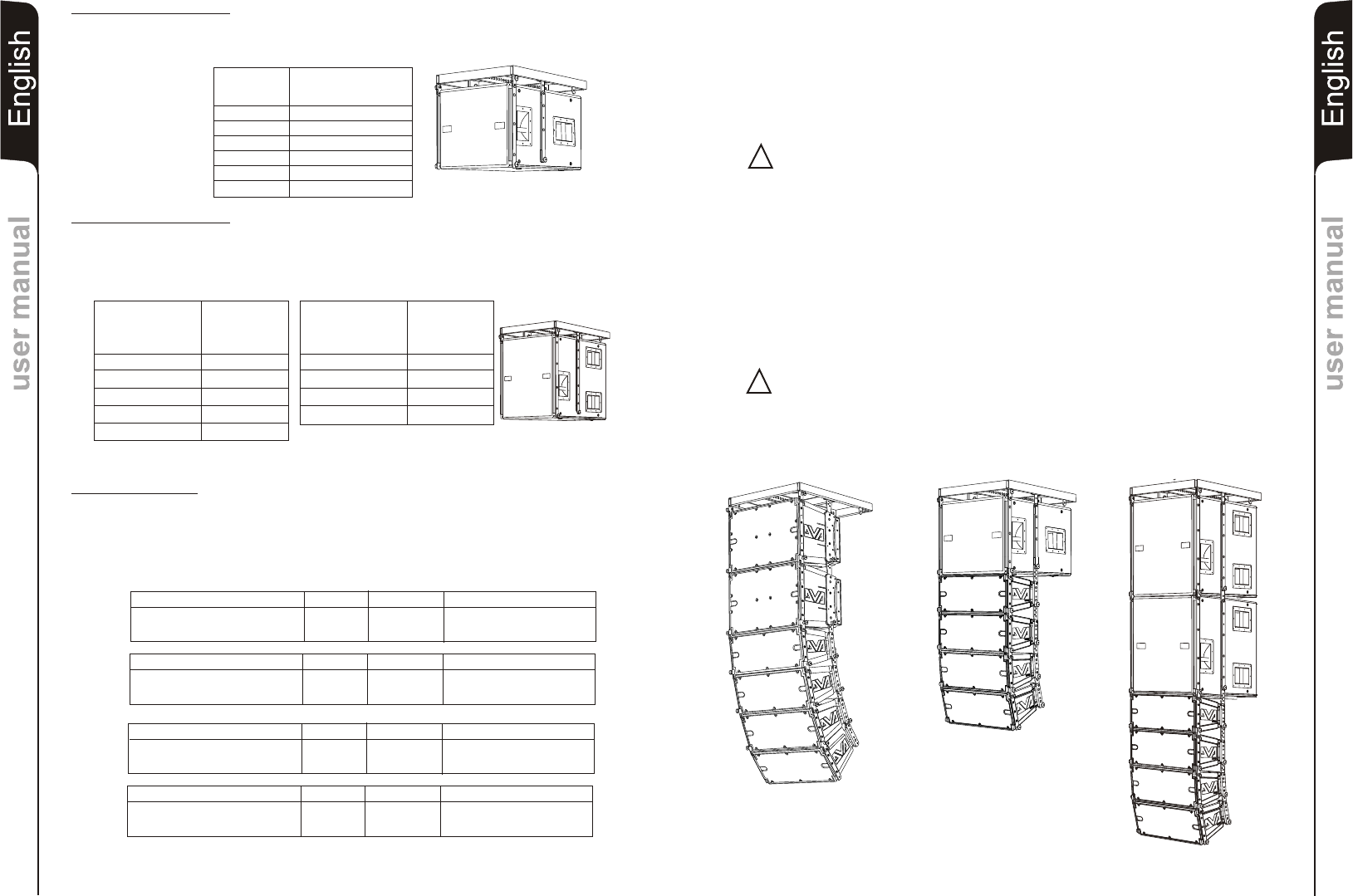

Mixed configuration
The modular structure of DVA system permits mixed suspension configuration between
speakers.
For this reason it is necessary to calculate the total weight according to the different
configurations.
Examples:
Quantity Weight x qty Configuration weight
DVA T4 8 120Kg
DVA S10dp(Neodimium woofer) 2 96Kg
Quantity Weight x qty Configuration weight
DVA T4 8 120Kg
DVA S09dp 2 74Kg
Quantity Weight x qty Configuration weight
DVA T12 5 150Kg
DVA S10dp(Neodimium woofer) 2 96Kg
Quantity Weight x qty Configuration weight
DVA T12 4 120Kg
DVA S09dp 1 37Kg
216Kg
194Kg
246Kg
157Kg
Table 4
