User Manual

Page 6 Draft 7/5/01 Fan-Aspirated Radiation Shield
Verifying Sensor
Connections:
1. Locate the SIM inside
the radiation shield.
2. Verify that the rain sen-
sor cable is plugged into
the receptacle labeled
“RAIN” on the SIM.
3. If you have a Vantage
Pro Plus, verify that the
UV and solar radiation
sensors are plugged into
the SIM.
Connecting Anemometer to SIM
Refer to this section in your ISS Installation Manual.
Cabled Vantage Pro: Powering the ISS and Testing Com-
munication with the Console
Refer to this section in your ISS Installation Manual.
Sensor Interface
Cable
Solar Power
Cable
(wireless
models only)
Sensor Interface
Module

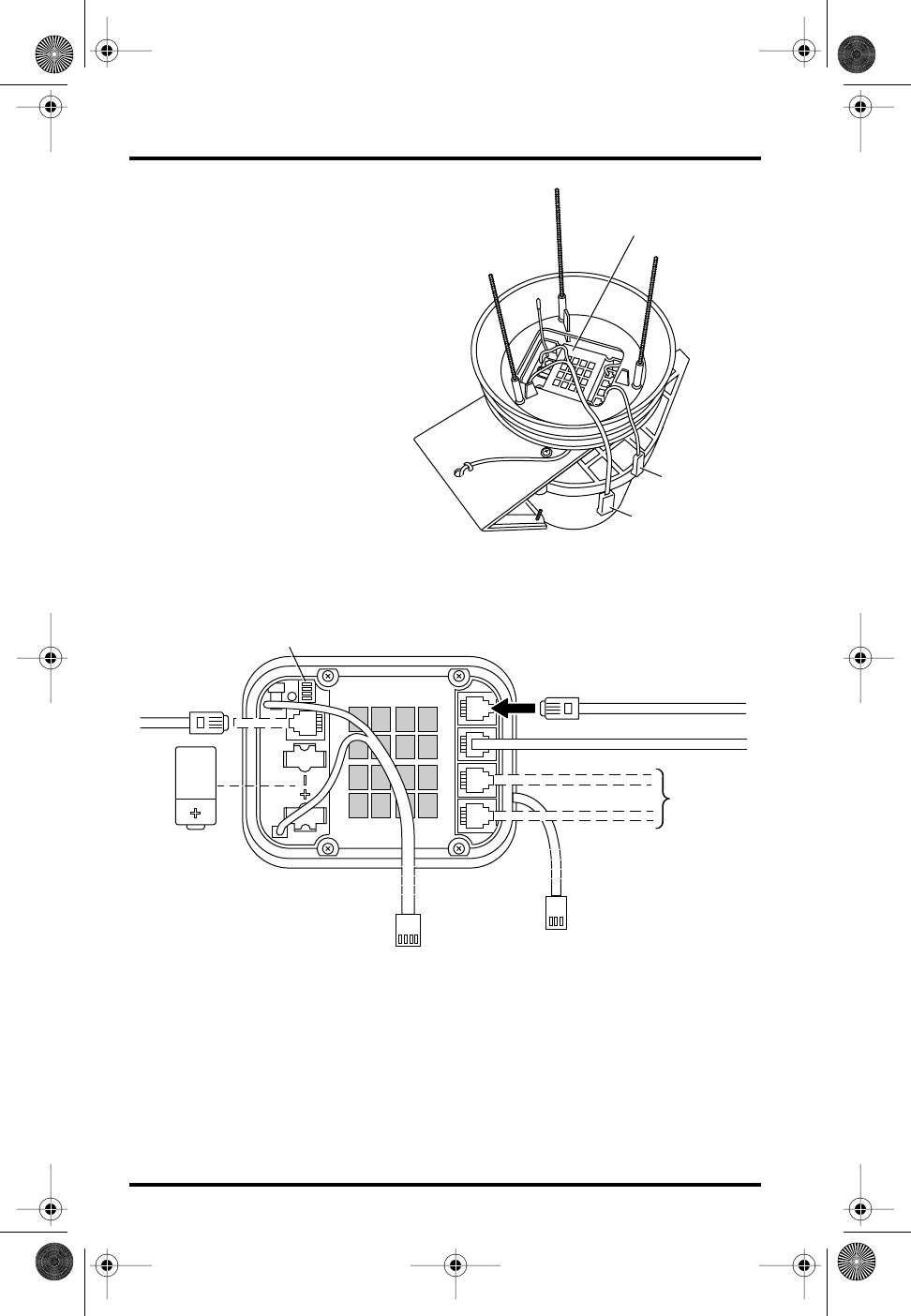

Locating the ISS SIM
3-Volt
Lithium Battery
(wireless models
only)
Console Cable
(cabled
models only)
Transmitter
ID Switches
Anemometer Cable
UV Sensor Cable
Solar Radiation Cable
Rain Collector Cable (factory installed)
(factory
installed
on Pro Plus
models)
WIND RAIN SOLAR UV
Solar Power
Cable
(wireless models only)
Sensor Interface
Cable
ISS SIM Connectionsl
